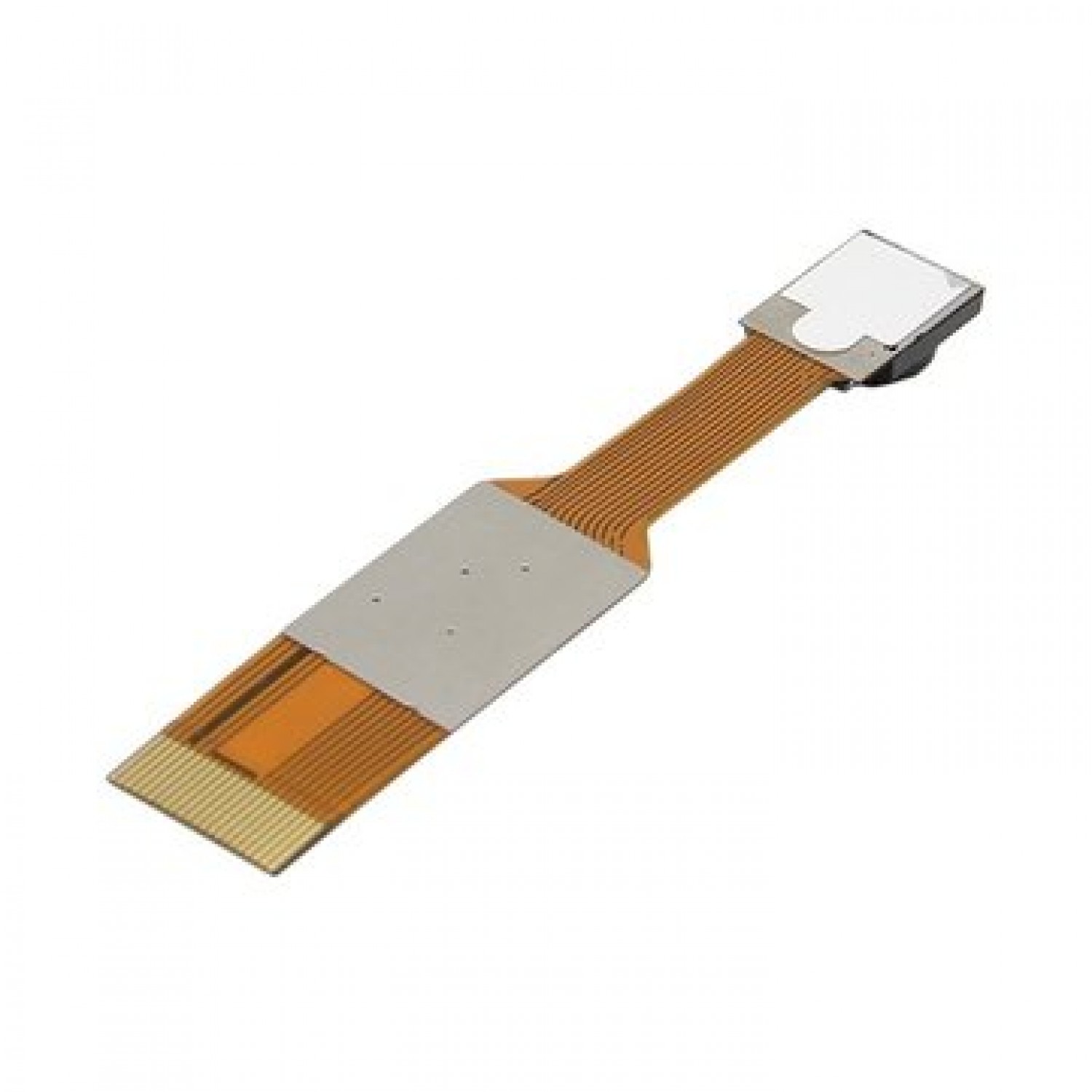

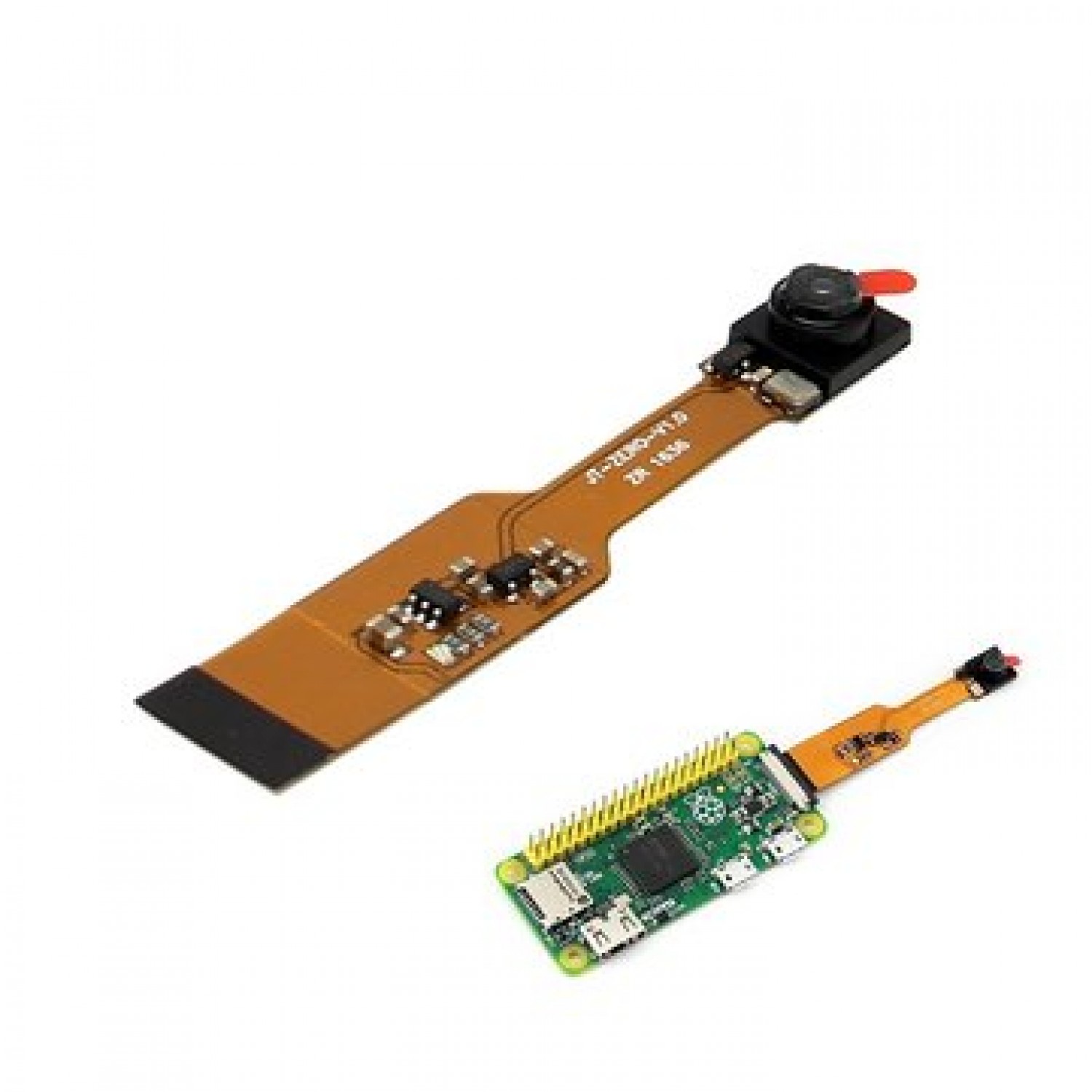

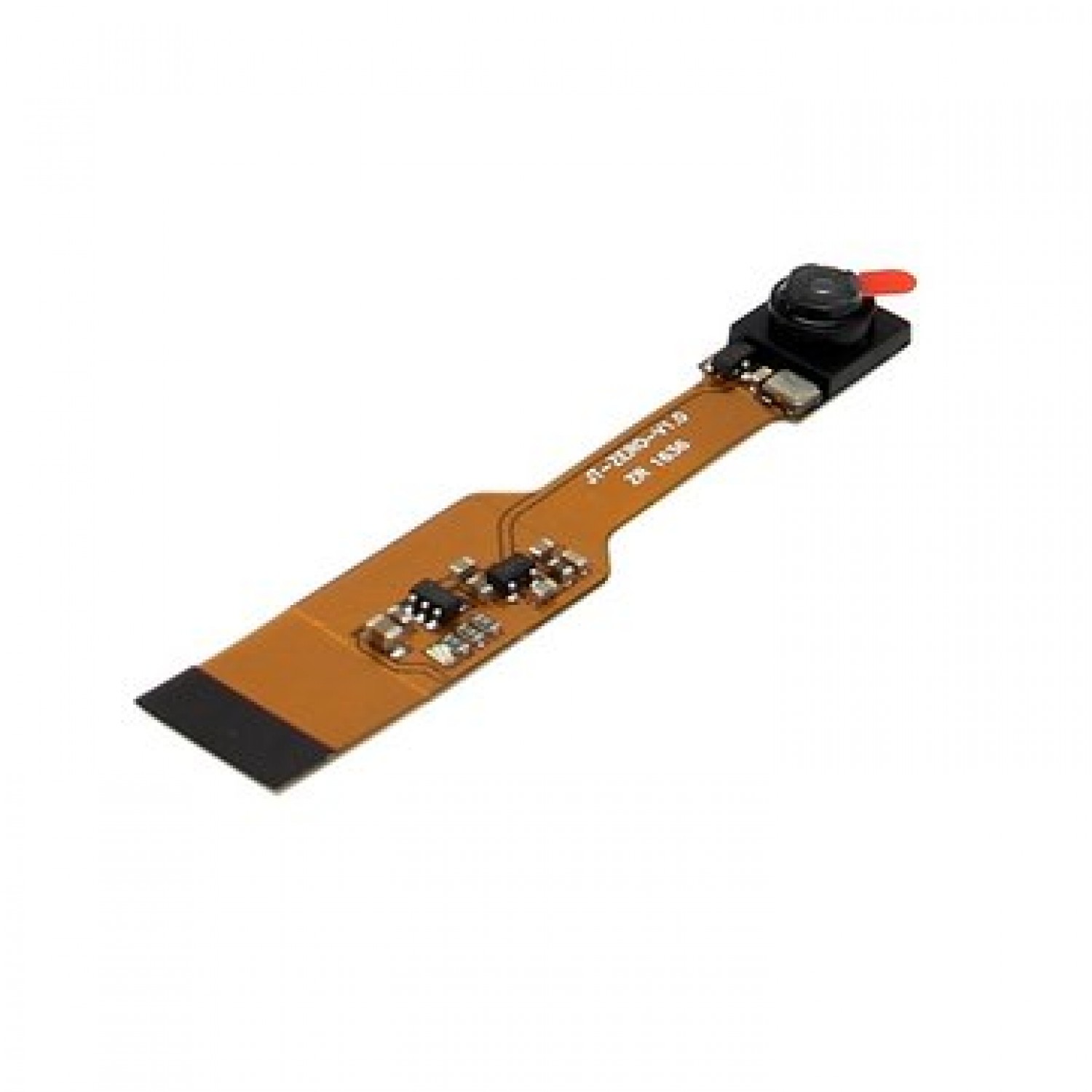

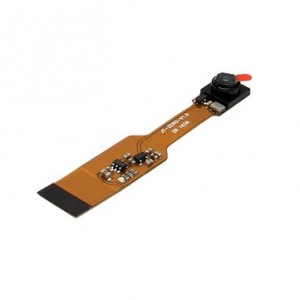

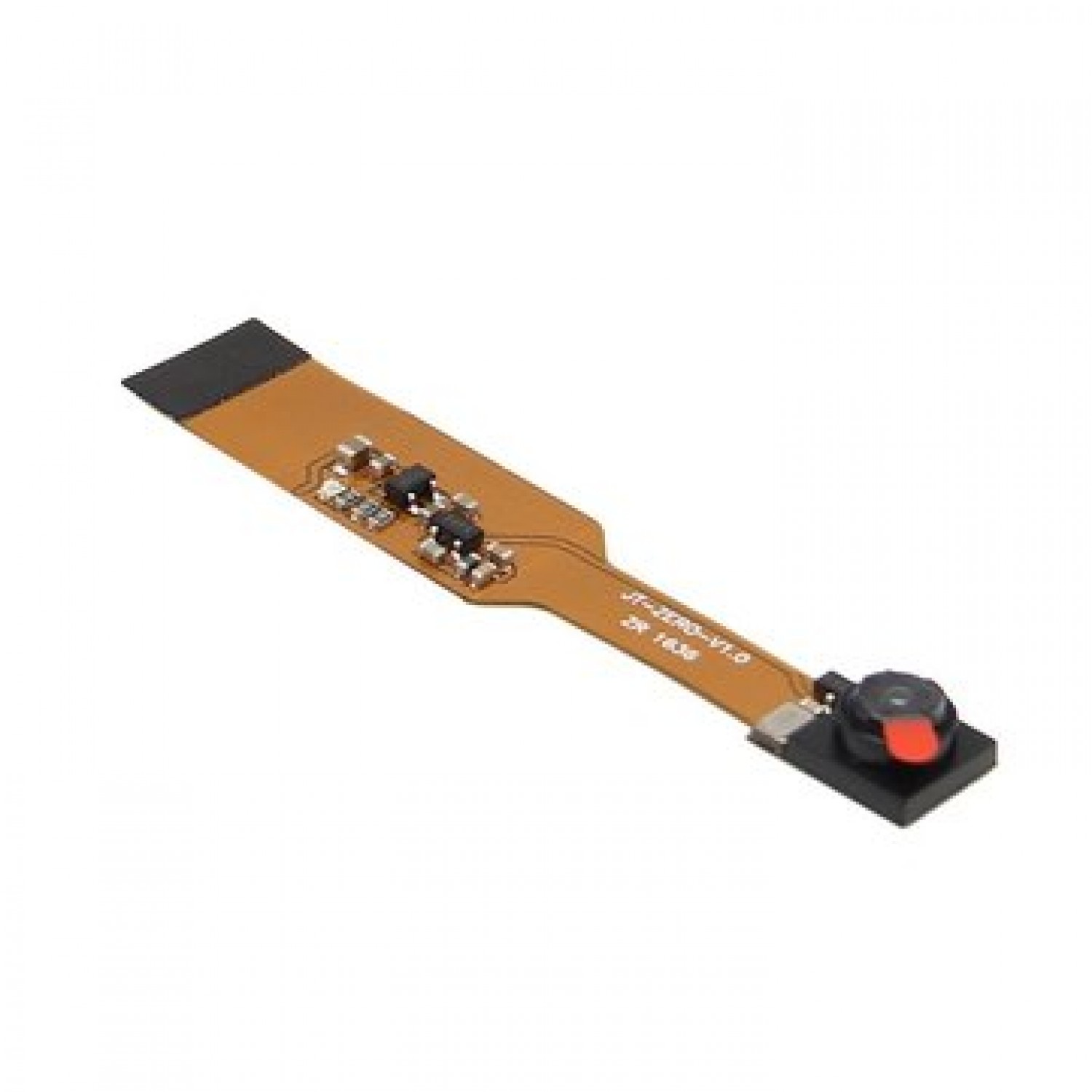

5MP 720P/1080P Mini Camera Module For Raspberry Pi Zero

  • Product Code: SKU496500
  • Availability: In Stock
$22.17 Ex Tax: $22.17

This product has a minimum quantity of 20

0 reviews / Write a review

Overview:

It' s a customized mini camera for Raspberry Pi Zero V1.3
With the small size, it can be integrated with RPi Zero into any application that has high command of demension.

Feature:

- Interface: CSI
- 5 Megapixel OV547 sensor
- Max. Resolution: 2592 x 1944
- Support 1080p30, 720p0, and 40x480p0 90 video
- CCD Dimension: 14 inch
- Diagonal: 72.4 degree
- Sensor best solution: 720p,1080p
- Dimension: 0mm x 11.5mm x 5mm

Hardware connection:

- Plumb to connect the FFC with the connector(the one right beside the HDMI interface). The contact face to the HDMI interface when connection.
- Remove the protective film before using the lens.
- Beware of ESD damage and static electricity when use the bare board.

Software:

- RPi raspi-config and firmware have been updated to the camera. Execute apt-get update and apt-get upgrade
- Select camera in raspi-config, start up camera driver in RPI, and then boost
- Perform the command-line procedure raspivid and raspistill to operate the camera, capture video clips or images
- The captured video clips need to play with mplayer

Know more about this product, please click: http:www.raspberrypiwiki.comindex.phpRaspberry_Pi_Zero_Camera

Package included:

1 x Camera Module
