5Pcs 3.3V 8MHz ATmega328P-AU Pro Mini Microcontroller Board For

  • Product Code: 5xSKU106097
  • Availability: In Stock
$14.94 Ex Tax: $14.94

This product has a minimum quantity of 20

5Pcs 3.3V 8MHz ATmega328P-AU Pro Mini Microcontroller Board For Arduino

Description:

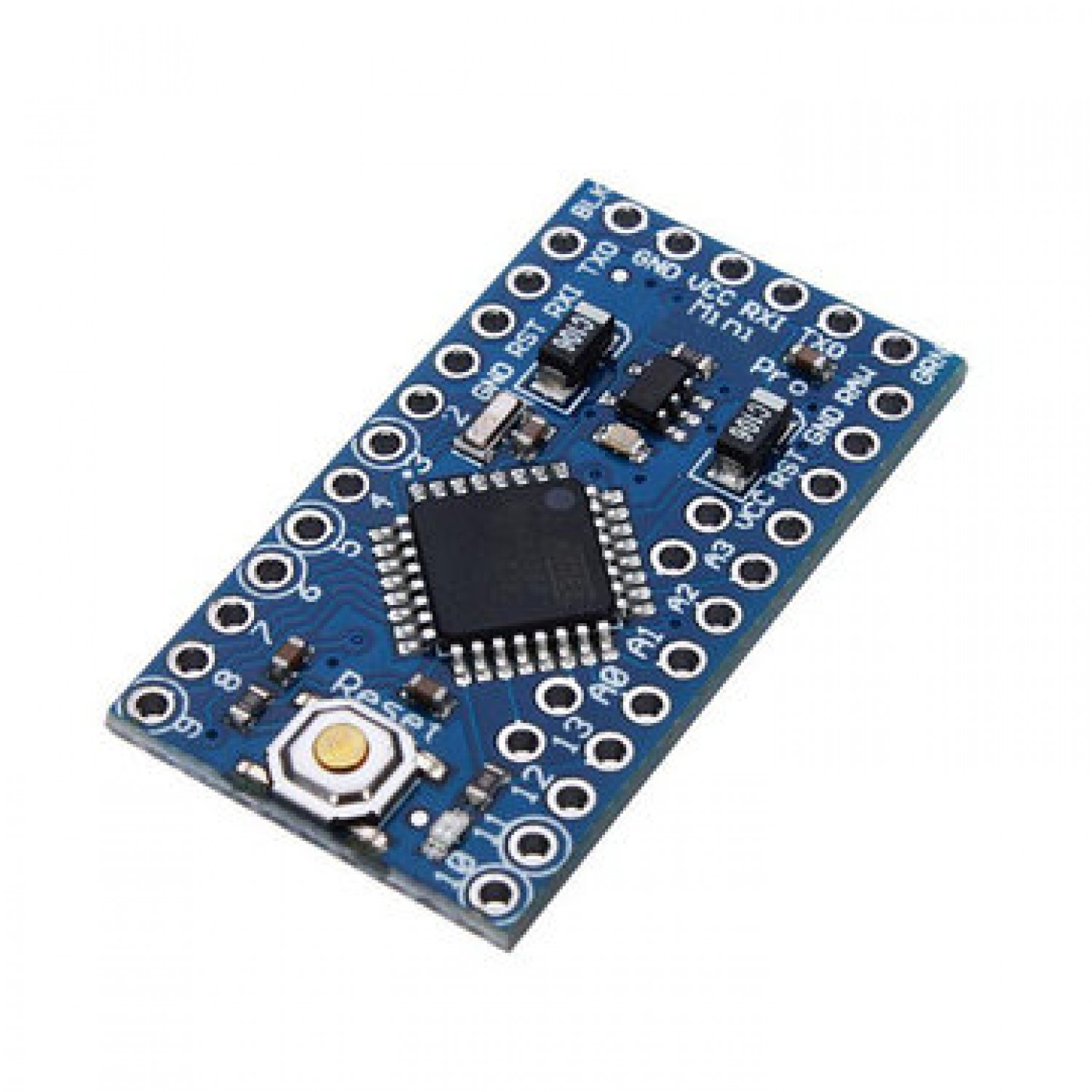

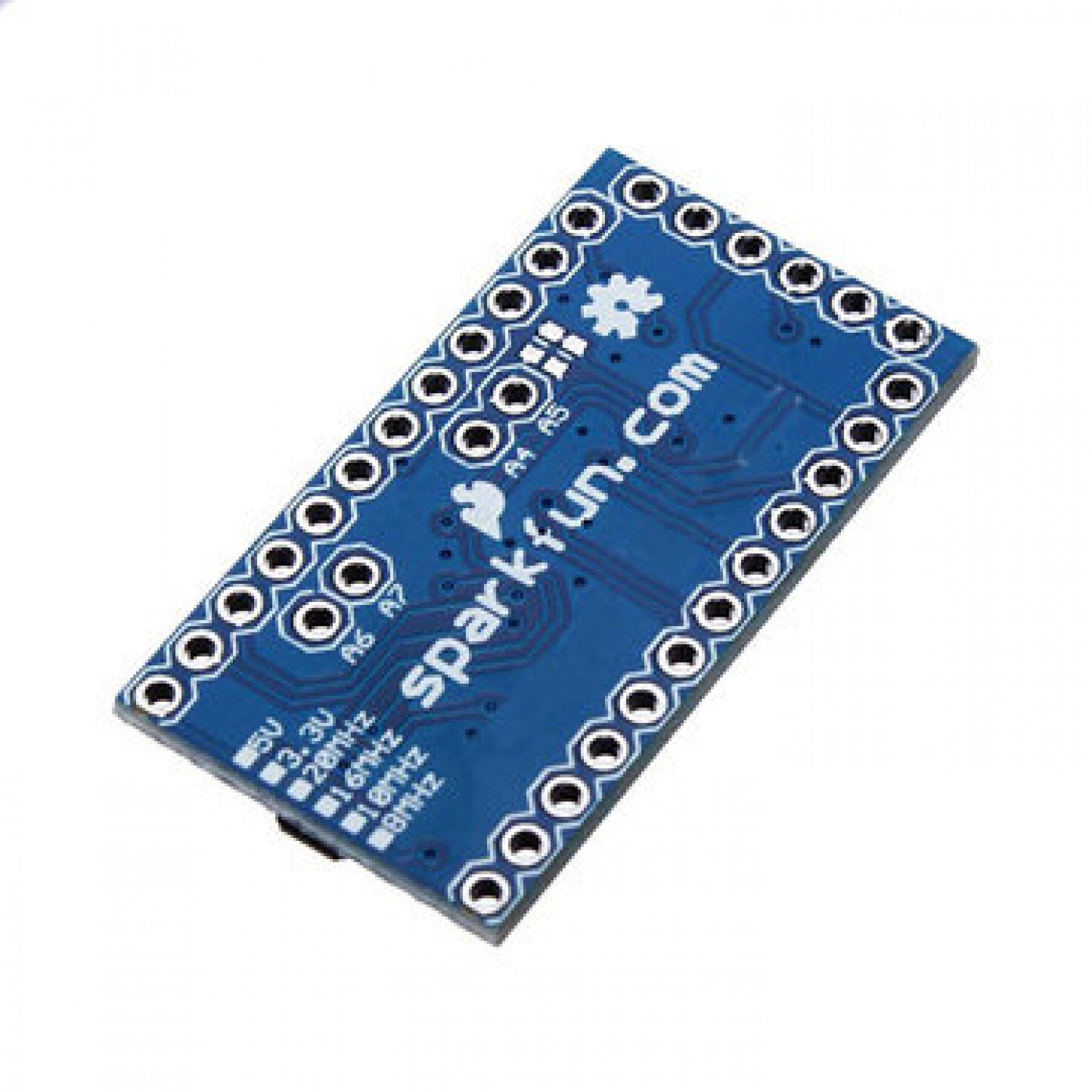

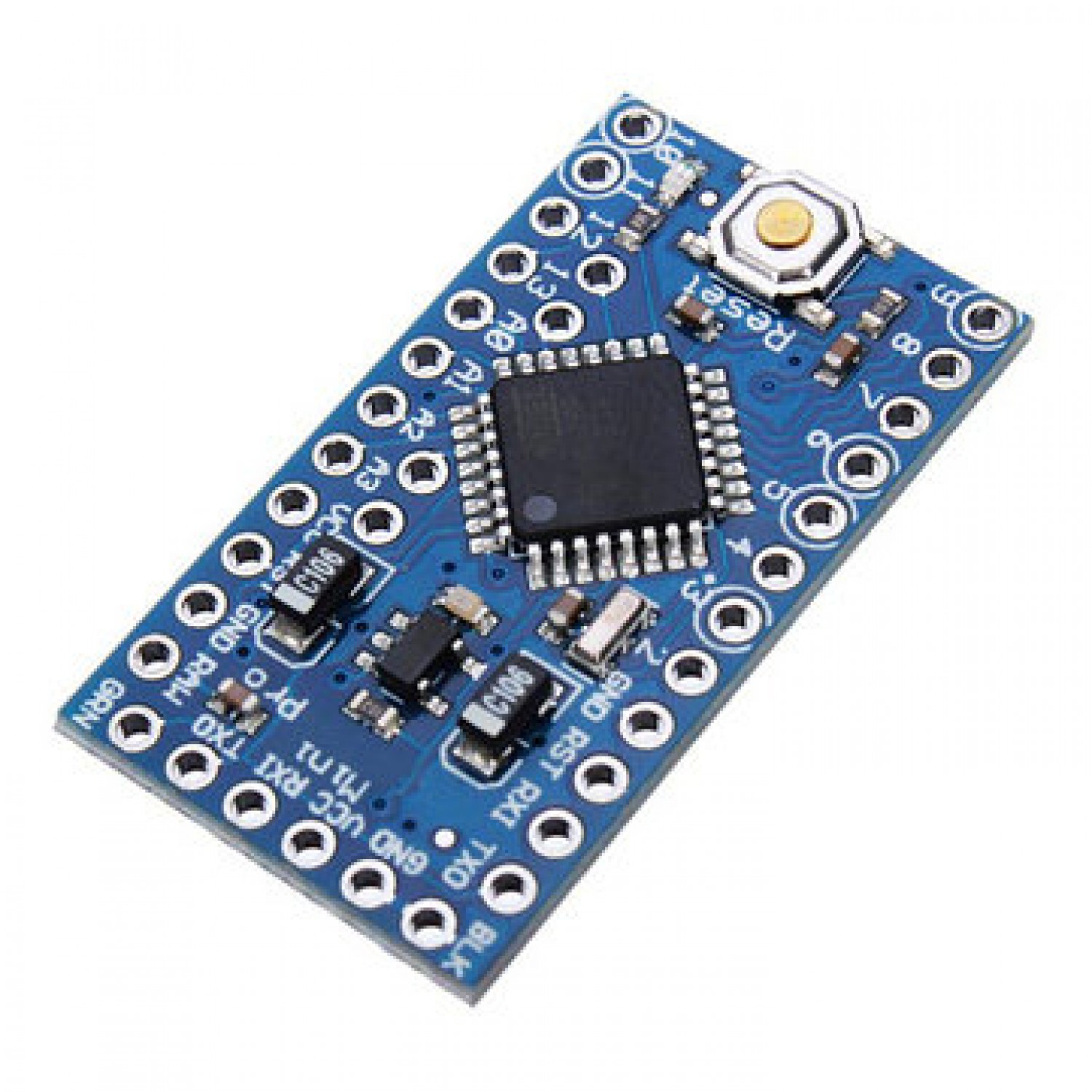

The Pro Mini is a microcontroller board based on the ATmega328 for Arduino. With 14 digital input output pins (of which can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. Six pin header can be connected to an FTDI cable to provide USB power and communication to the board.

Feature:

Using ATmel Atmega328P-AU MCU
TTL level serial port transceiver RX TX
Six PWM ports D3, D5, D, D9, D10, D11
Supporting serial download
Supporting external DC 2.4V ~ 12V power
Supporting 12V (or below) battery power

Specification:

Microcontroller: ATmega328
Operating Voltage: 3.3V
Input Voltage: 3.35V ~ 12V
Digital IO Pins: 14 (of which provide PWM output)
Analog Input Pins: 8
DC Current Per IO Pin: 40mA
Flash Memory: 1KB (of which 2KB used by bootloader)
SRAM: 1KB
EEPROM: 512bytes
Clock Speed: 8MHz
Size: 33.3 x 17.mm

Package included:

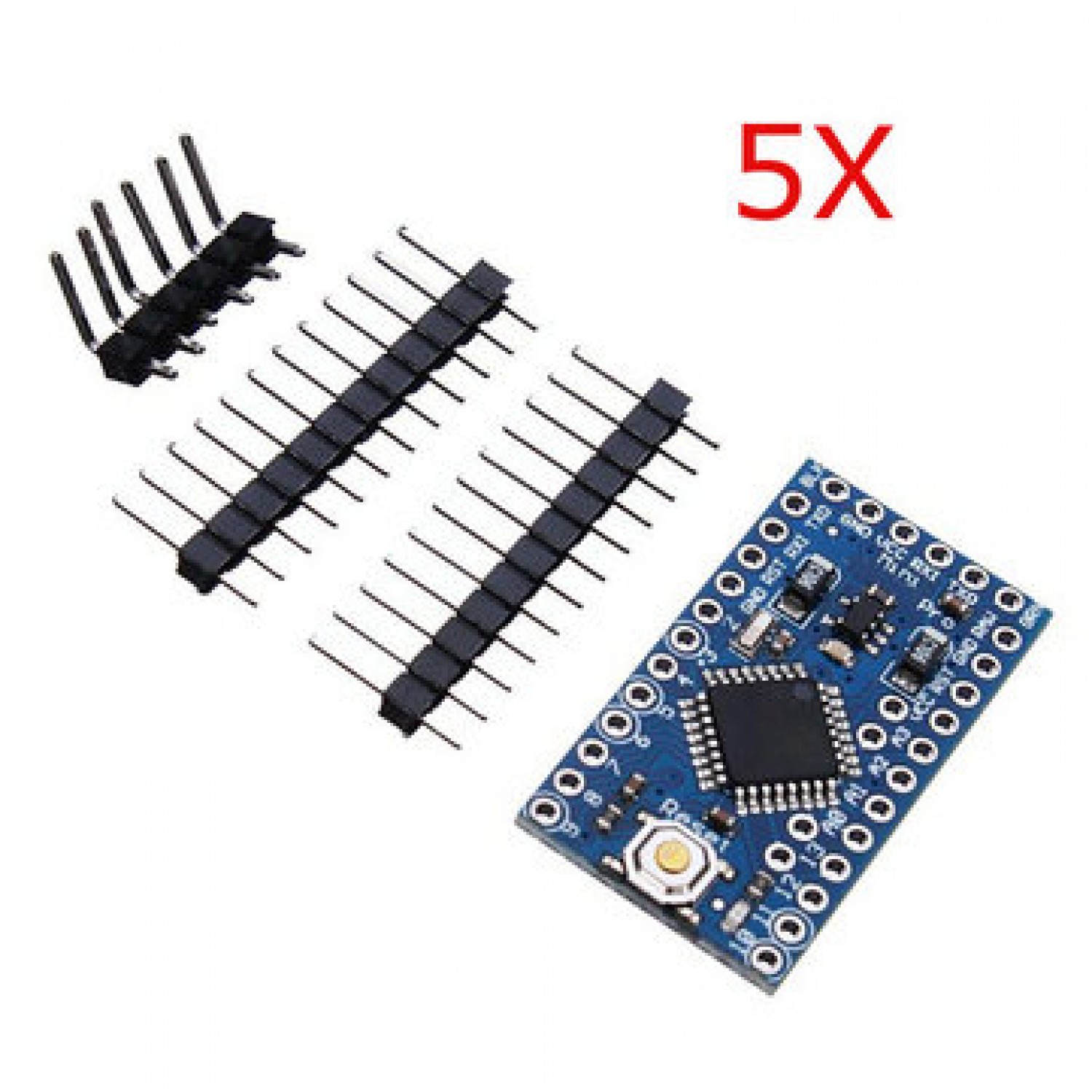

5 x 3.3V 8MHz Pro Mini(With Pins)
