ATmega328P Arduino Compatible Nano V3 + NANO Shield Expansion Board Kit

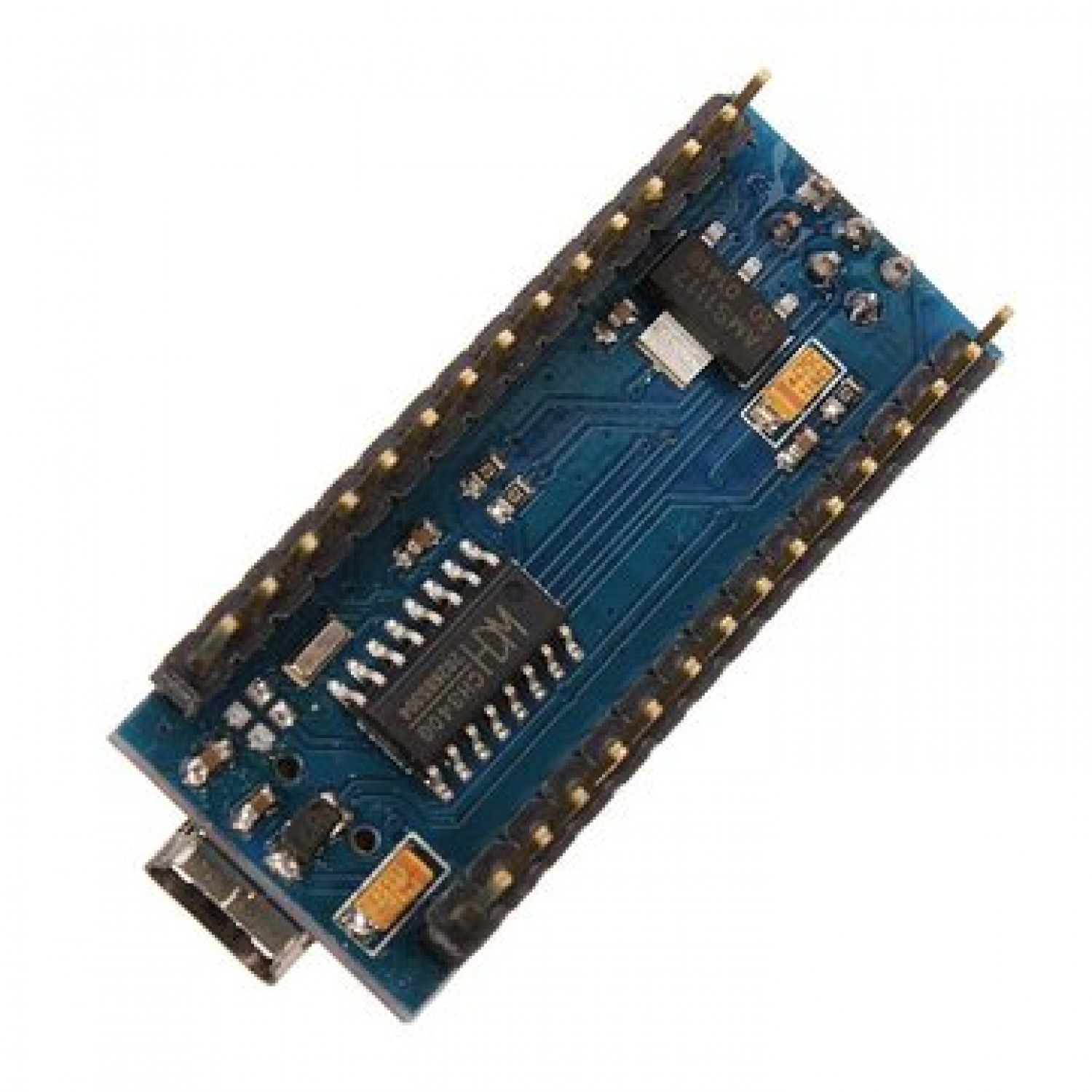

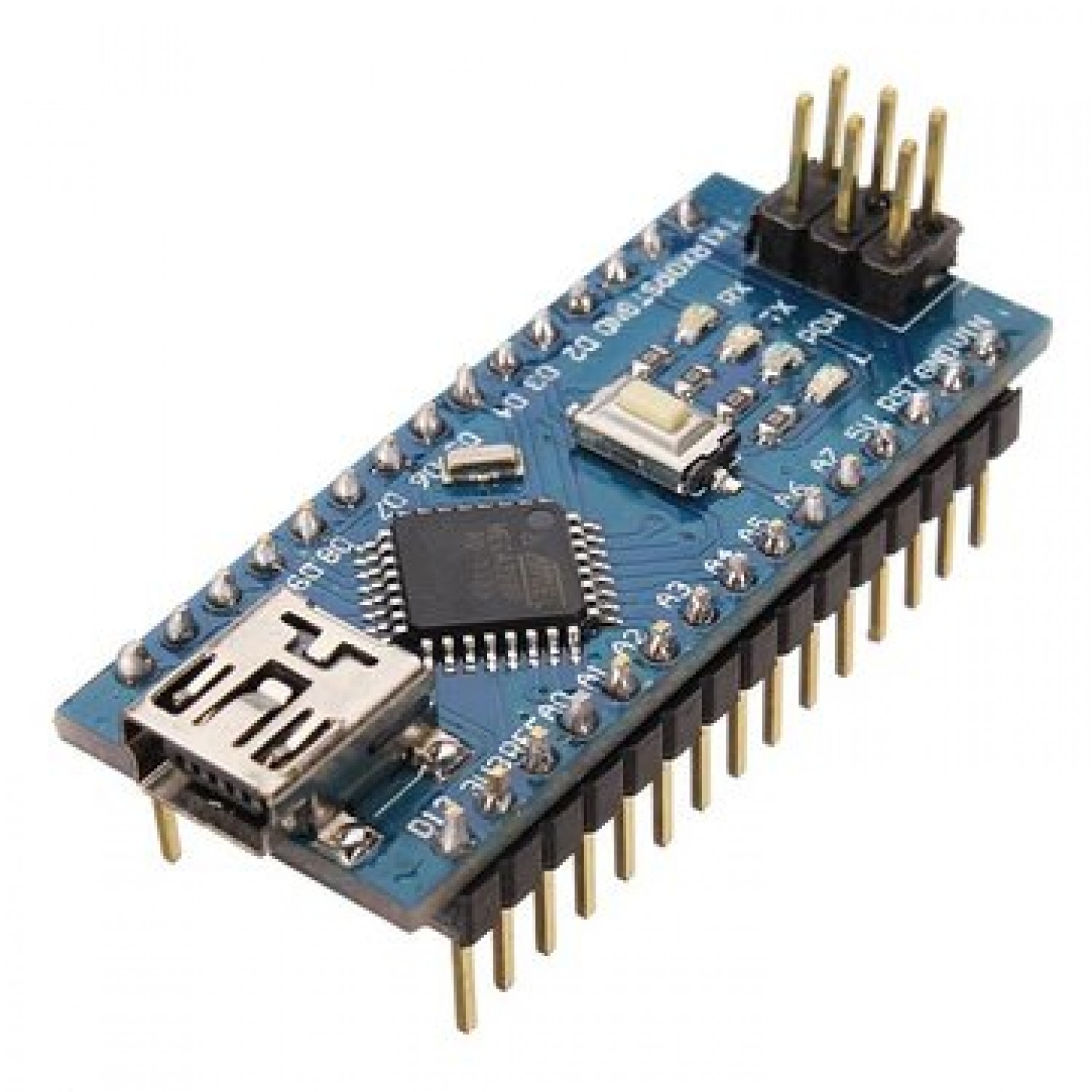

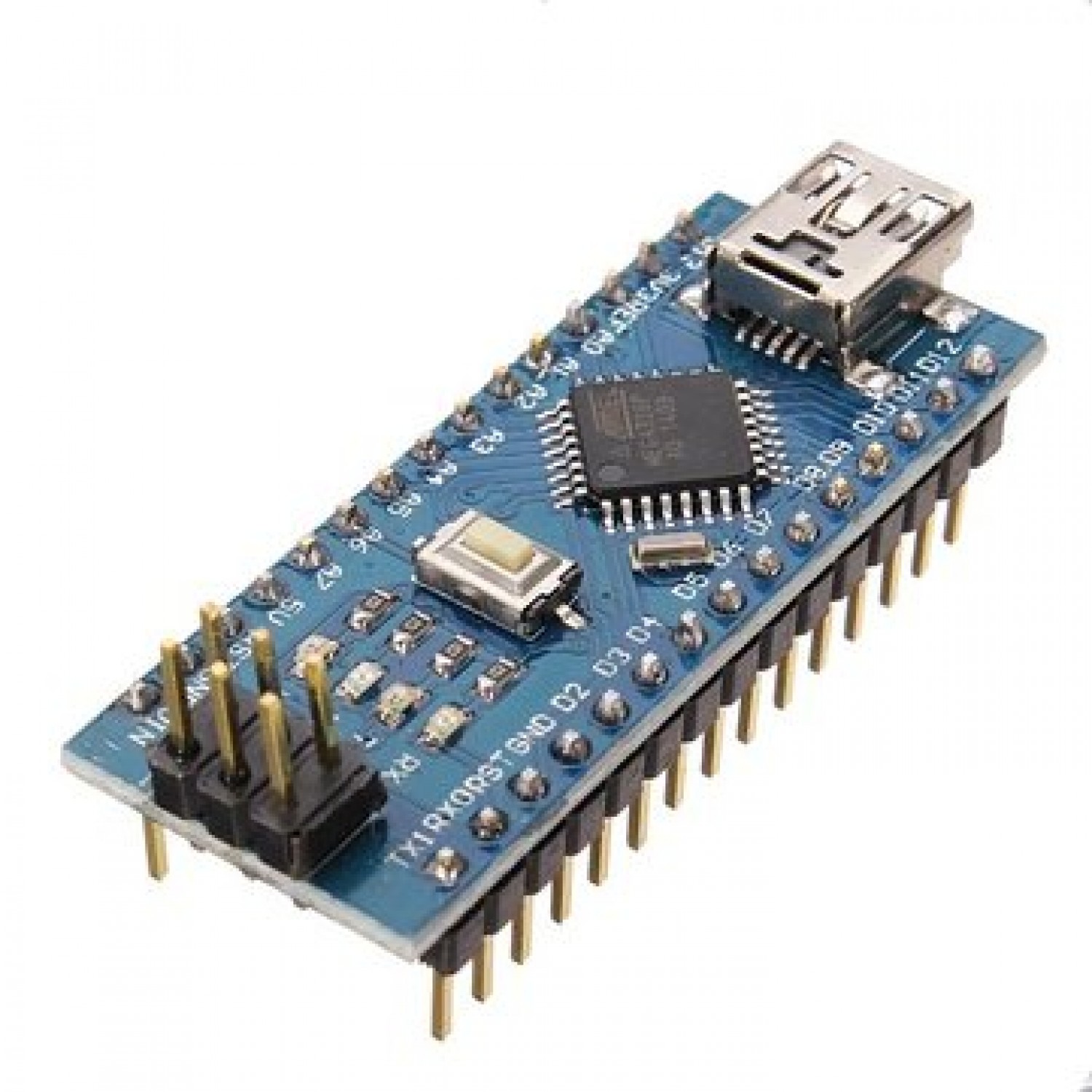

ATmega328P Arduino Compatible Nano V3 Description:
Changed the USB chip, improve the download speed and stability of WIN7WIN8
Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): V ~ 20 V
Digital IO Pins: 14 (of which provide PWM output)
Analog Input Pins: 8
DC Current per IO Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 1MHz

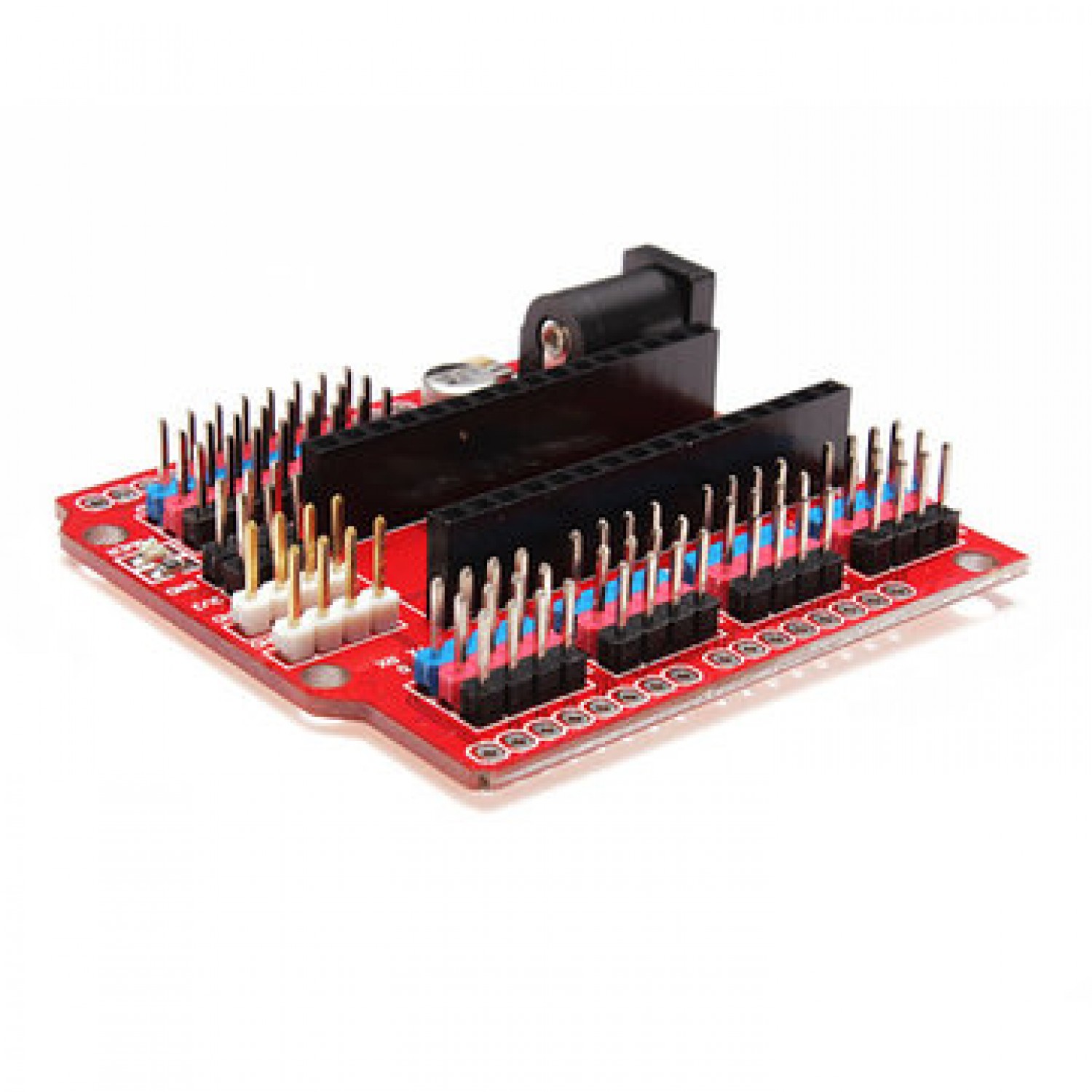

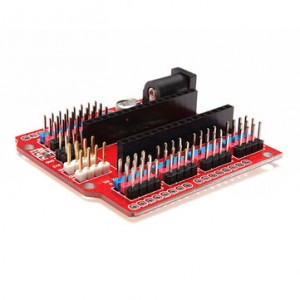

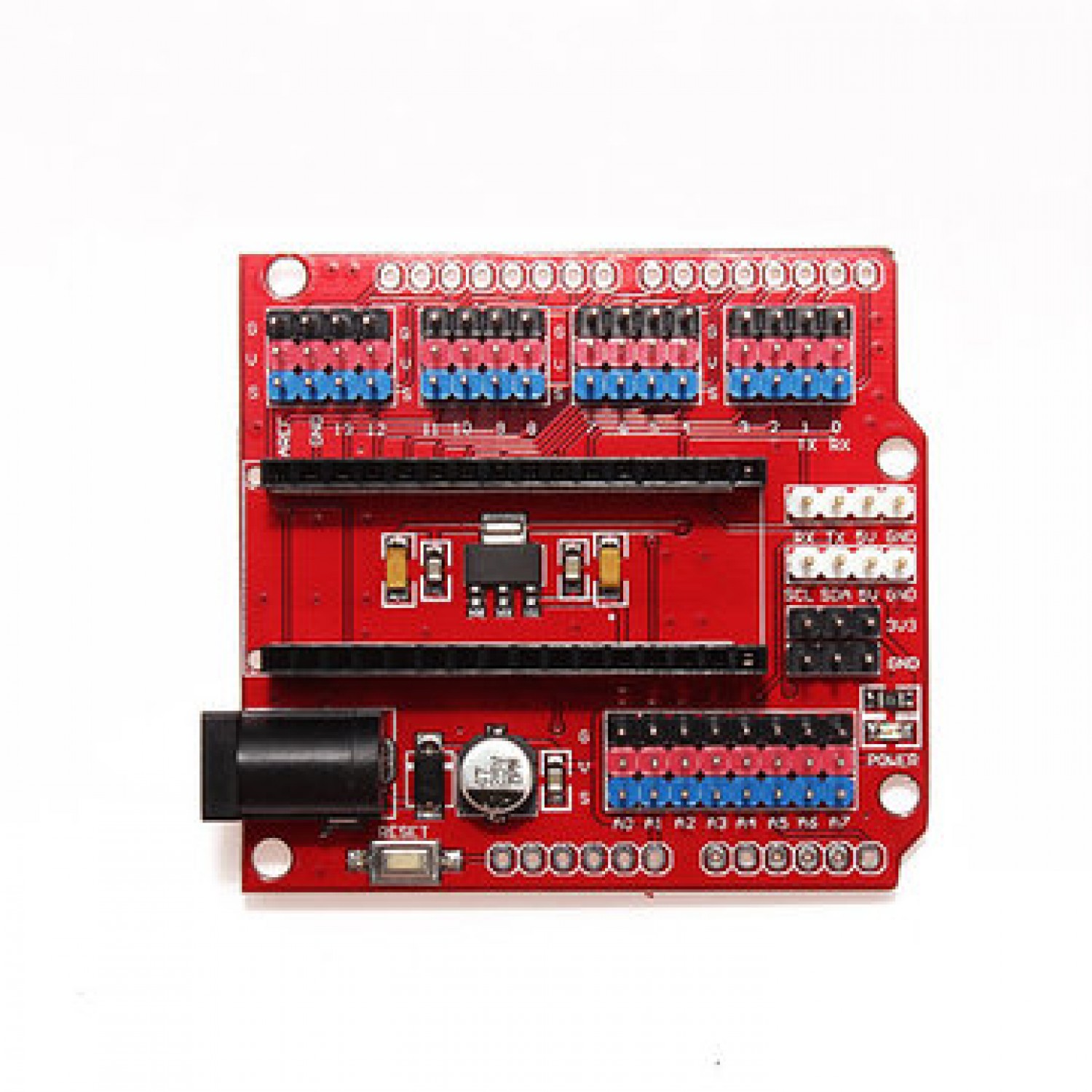

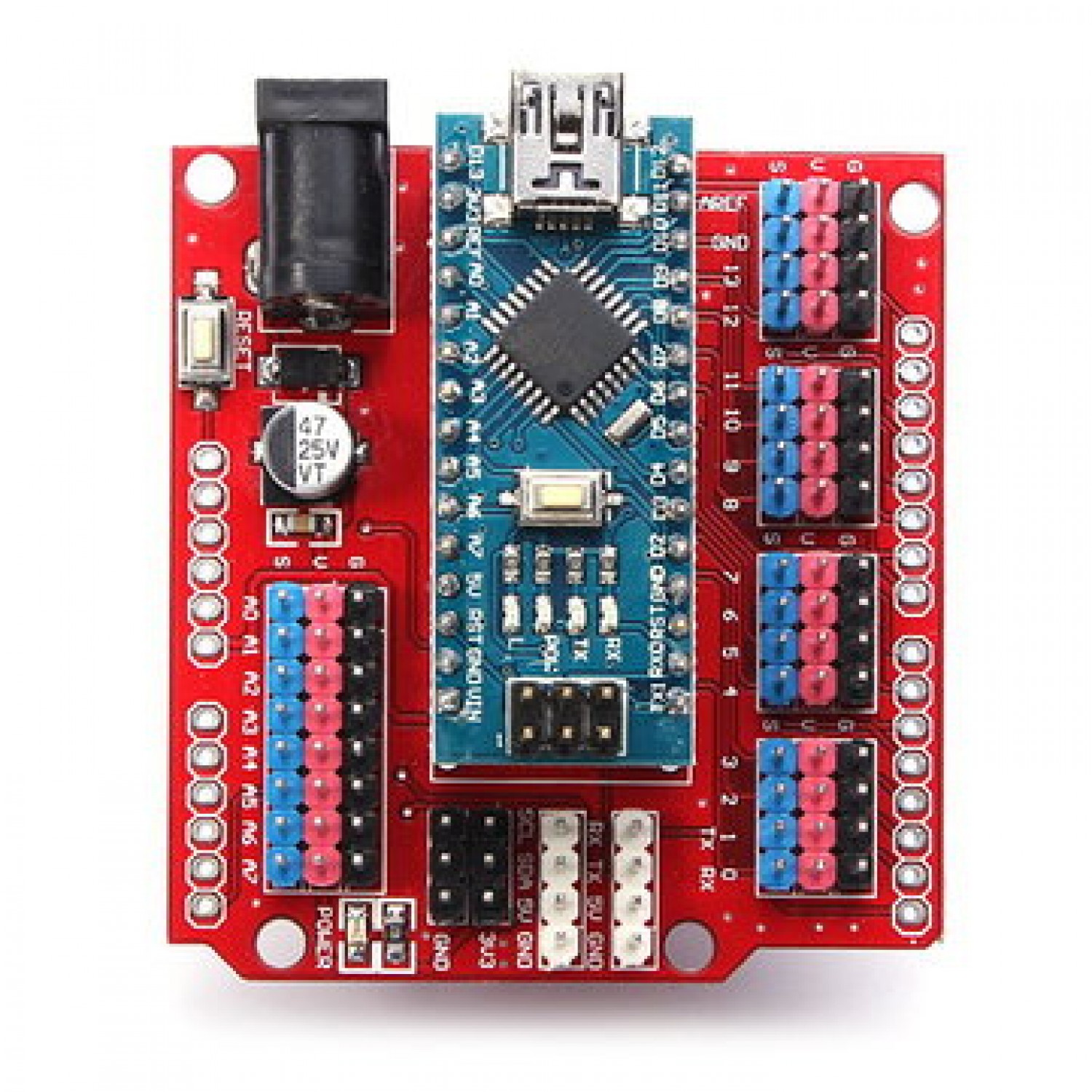

NANO Shield Expansion Board Description:
This Nano Mult-Function expansion board is designed specially for Arduino Nano, solve the problem of wiring confusing when a variety of sensors connected.
Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface.
Lead out the I2C interface of mainboard for convenient connection.

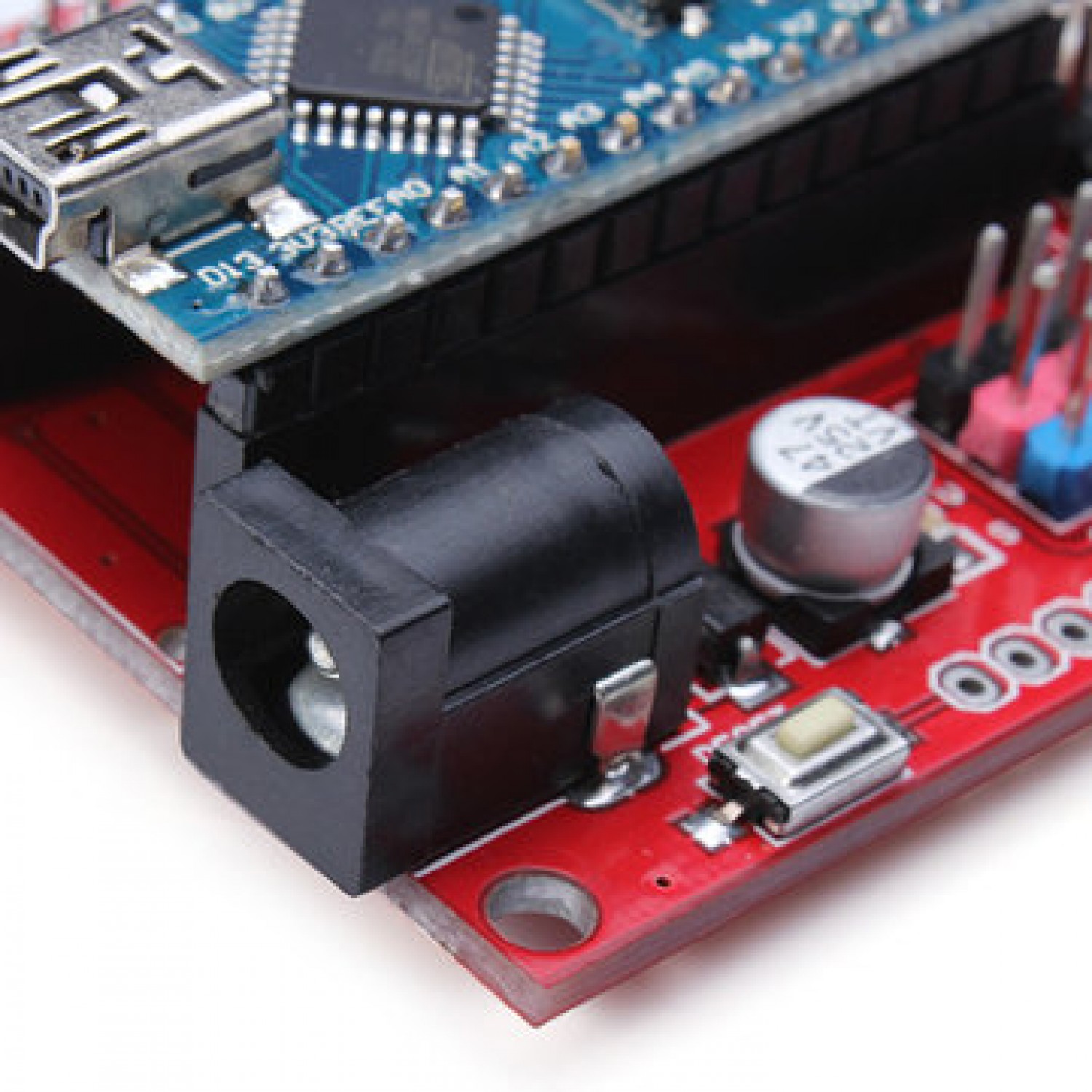

Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.
Package included:

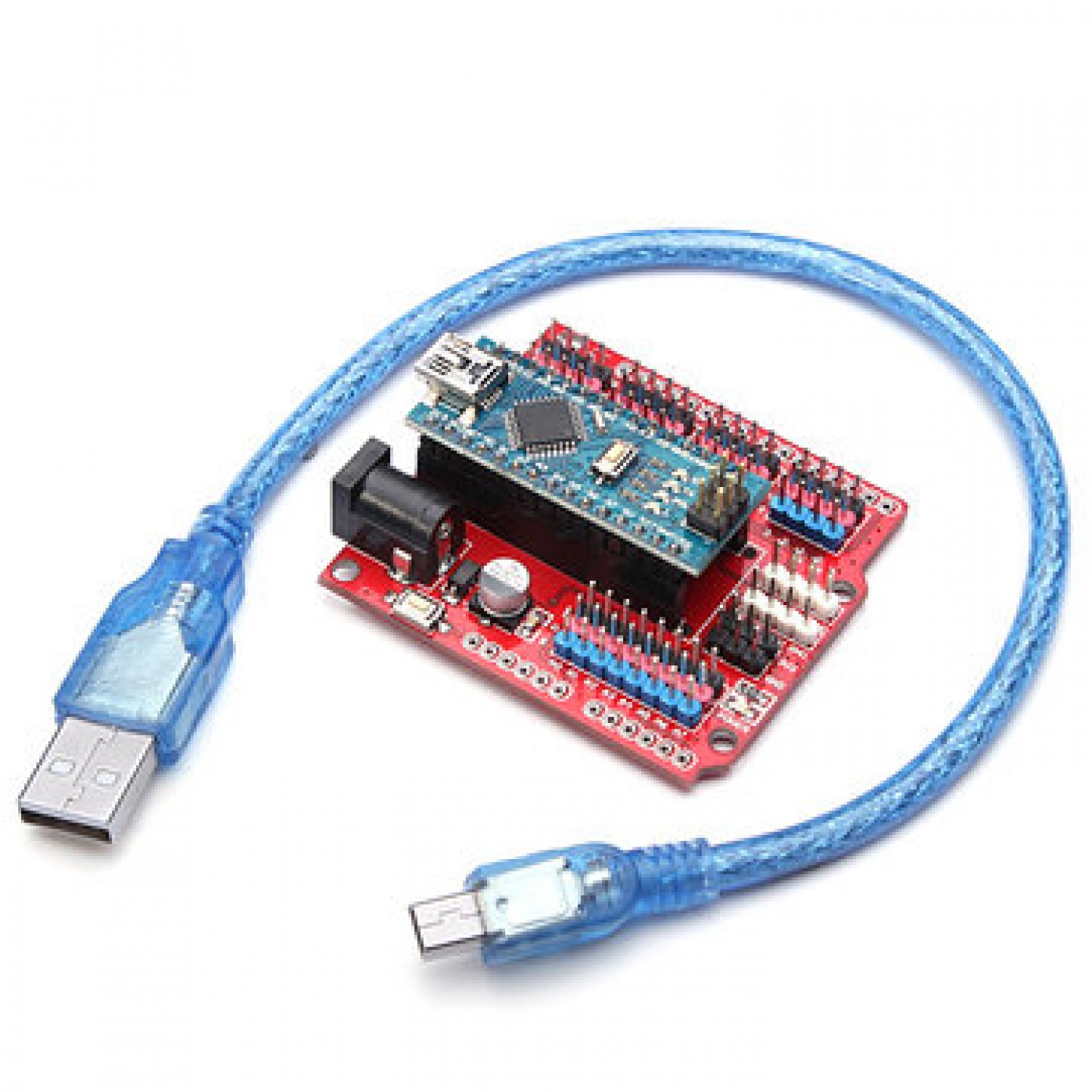

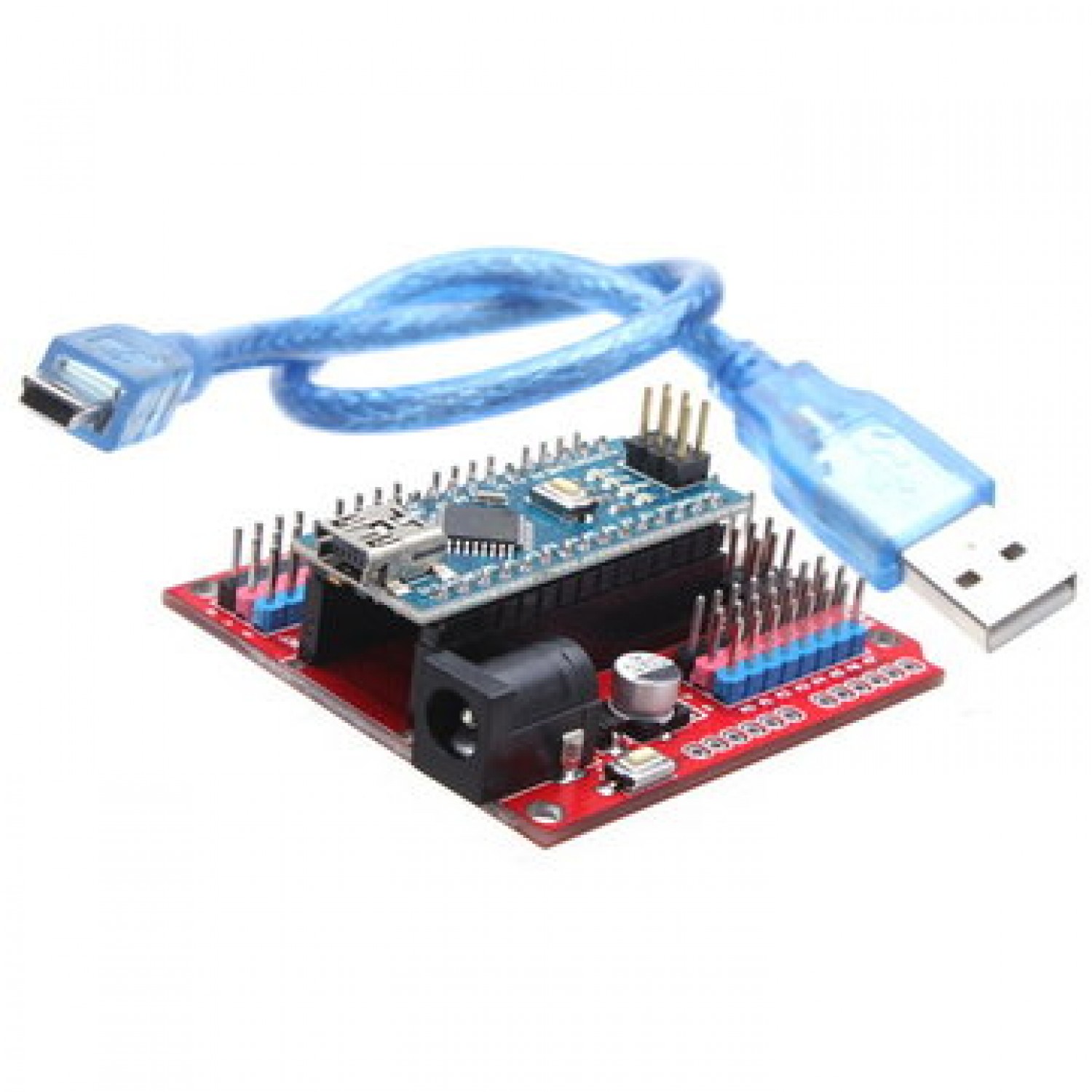

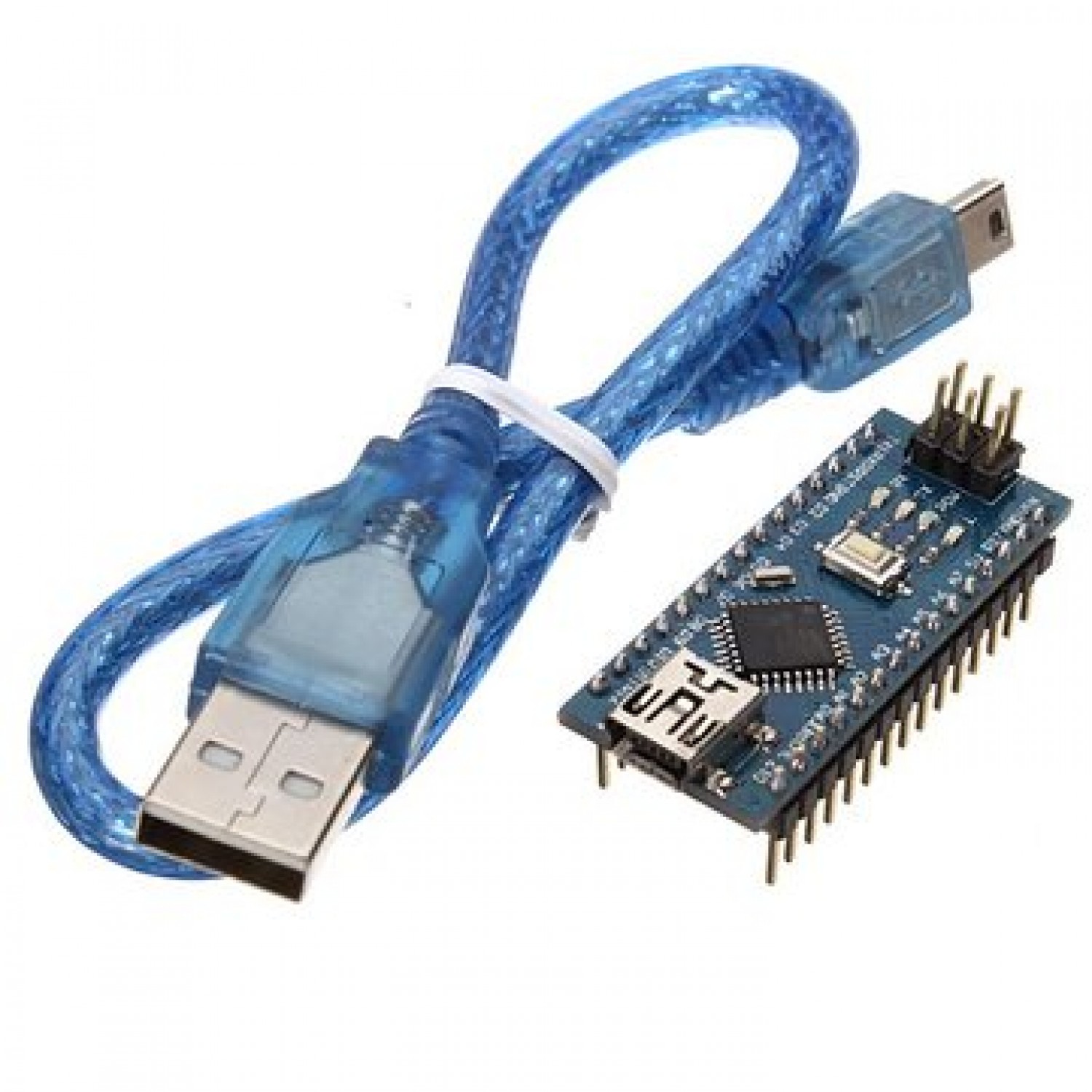

1 x ATmega328P Arduino Compatible Nano V3 with USB cable
1 x NANO Shield Expansion Board
