DDS Function Signal Generator Module Sine Square Sawtooth Triang

Description:

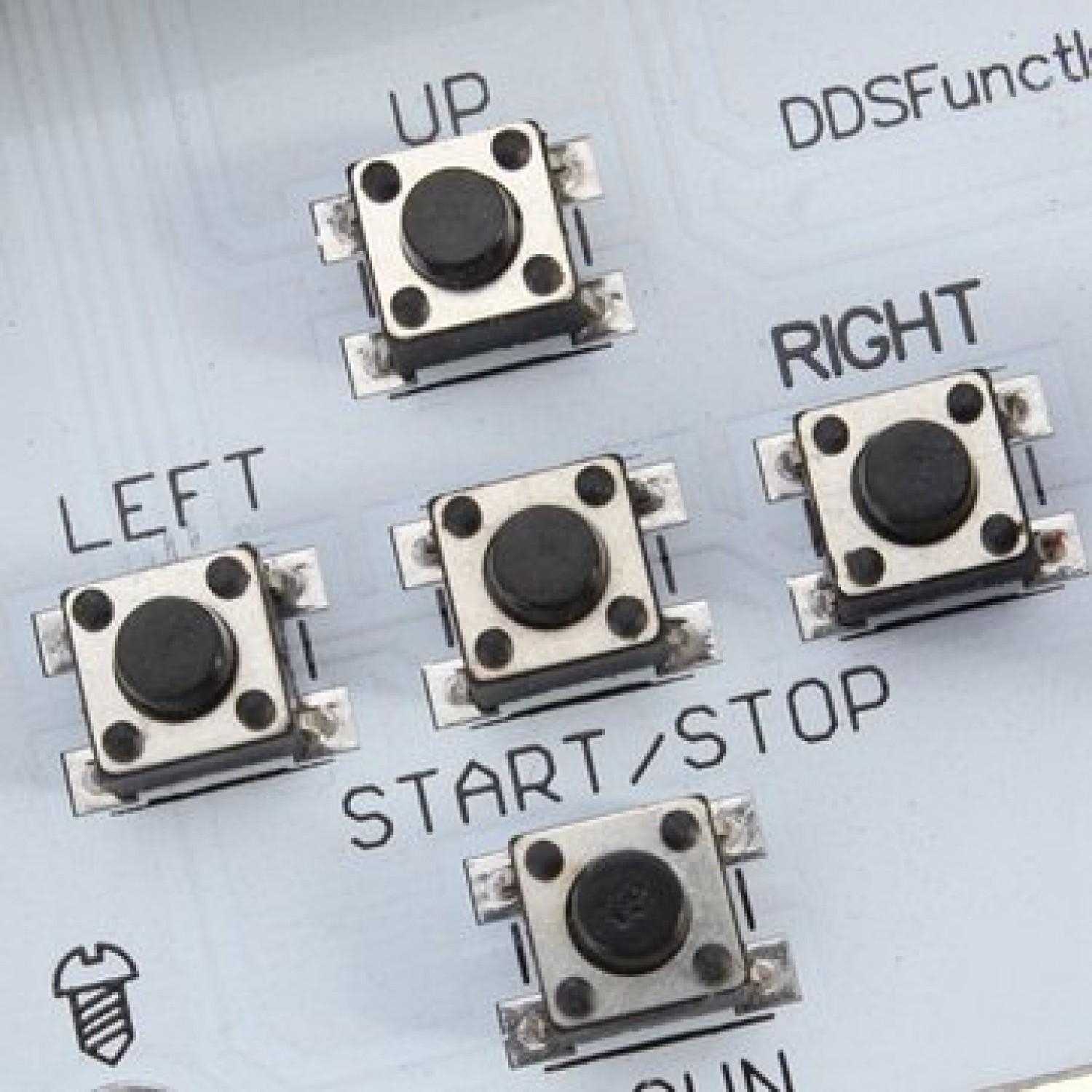

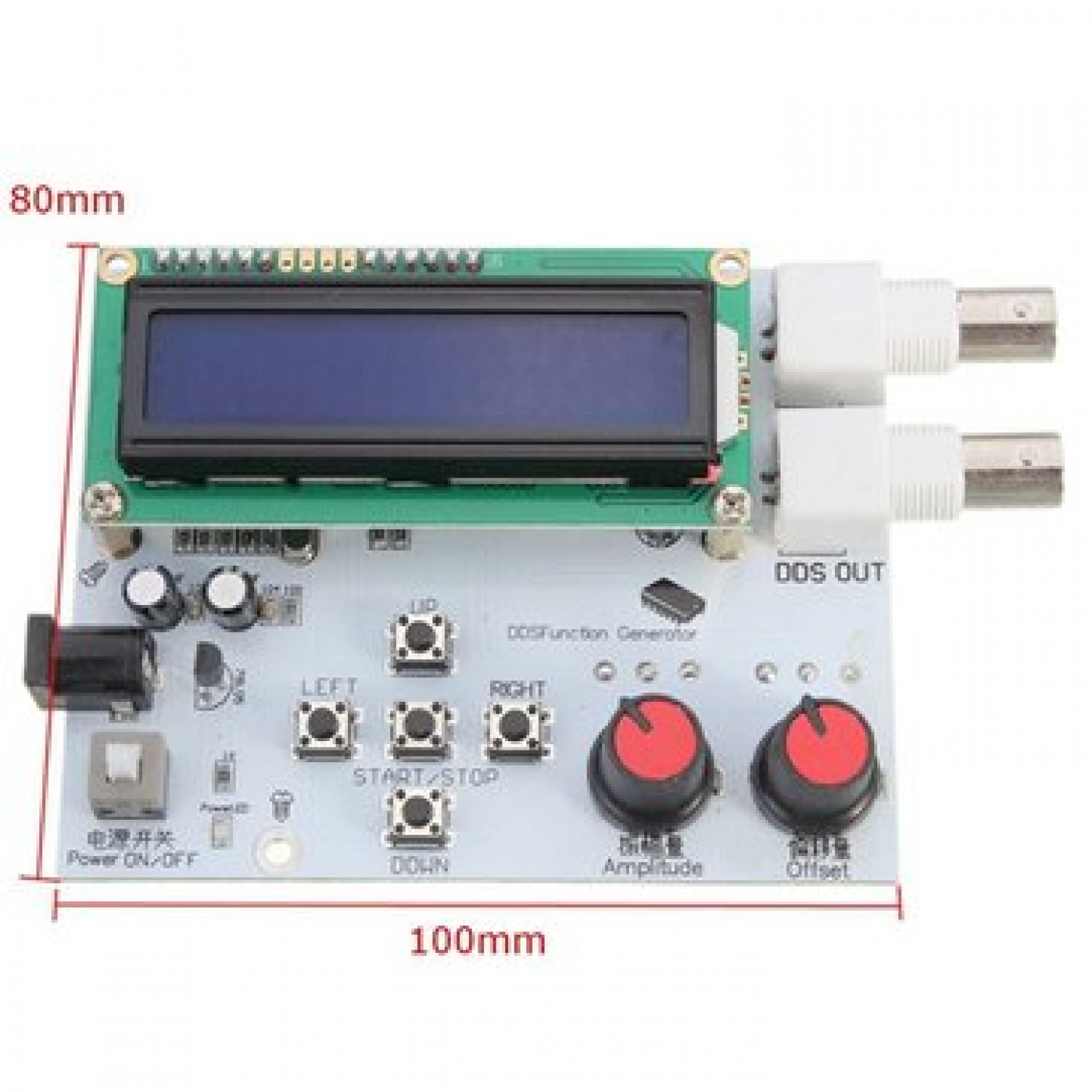

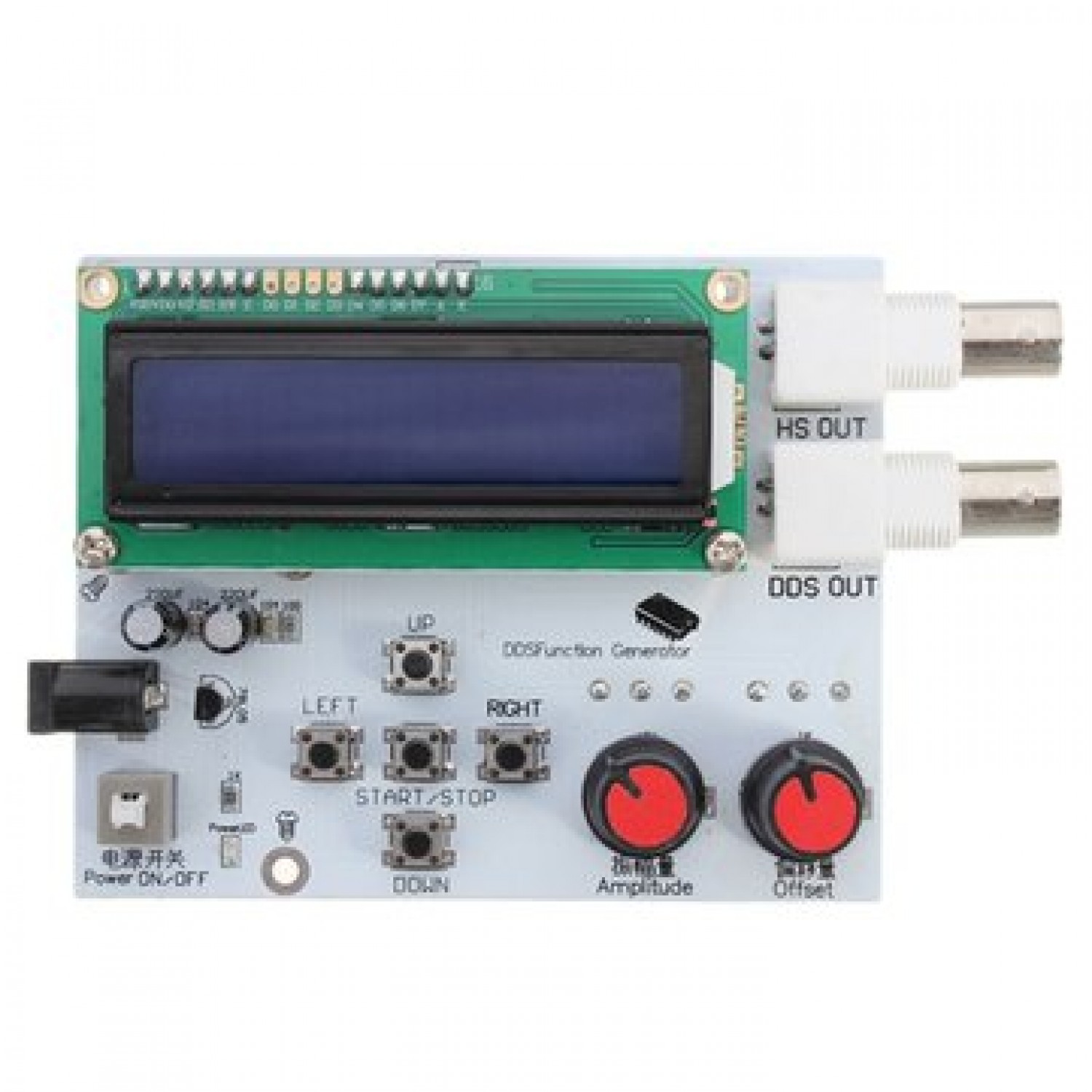

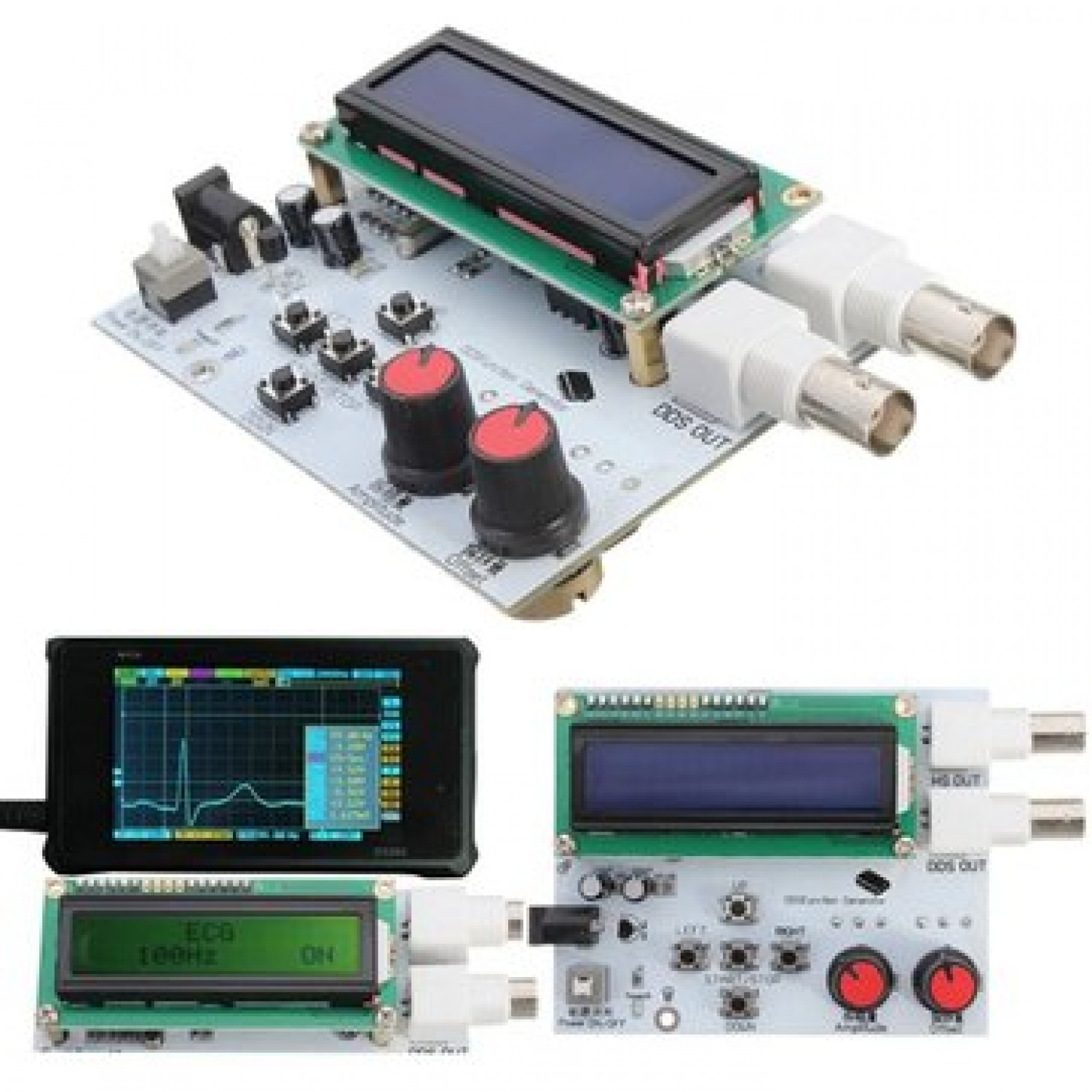

 Function (waveform) signal generator. Can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, and pulse wave, etc.) signal, the frequency range from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of a very wide range of applications.   Specification:   • Operating voltage: DC 7V - 9V • Size: 100 x 80mm (Length x width) • Template thickness: 2mm  • DDS frequency range: 1HZ-5534Hz • High-speed frequency (HS) Square wave: 1MHz2MHz4MHz8MHz • DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers • DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave and noise wave • 102 LCD screen • Intuitive 5 keyboard • Section into the value: 1,10,100,1000,10000 Hz • The power automatically restores the last used configuration • Offset: 0.5pp-5Vpp • Amplitude amount: 0.5Vpp-14Vpp • Output Impedance: 20-200 ohms   Buttons main functions:   The UP output waveform select The DOWN output waveform select LEFT output frequency - RIGHT output frequency + STOP  RUN the output stop  start

Package included:

 1 x DDS Function Signal Generator Module
