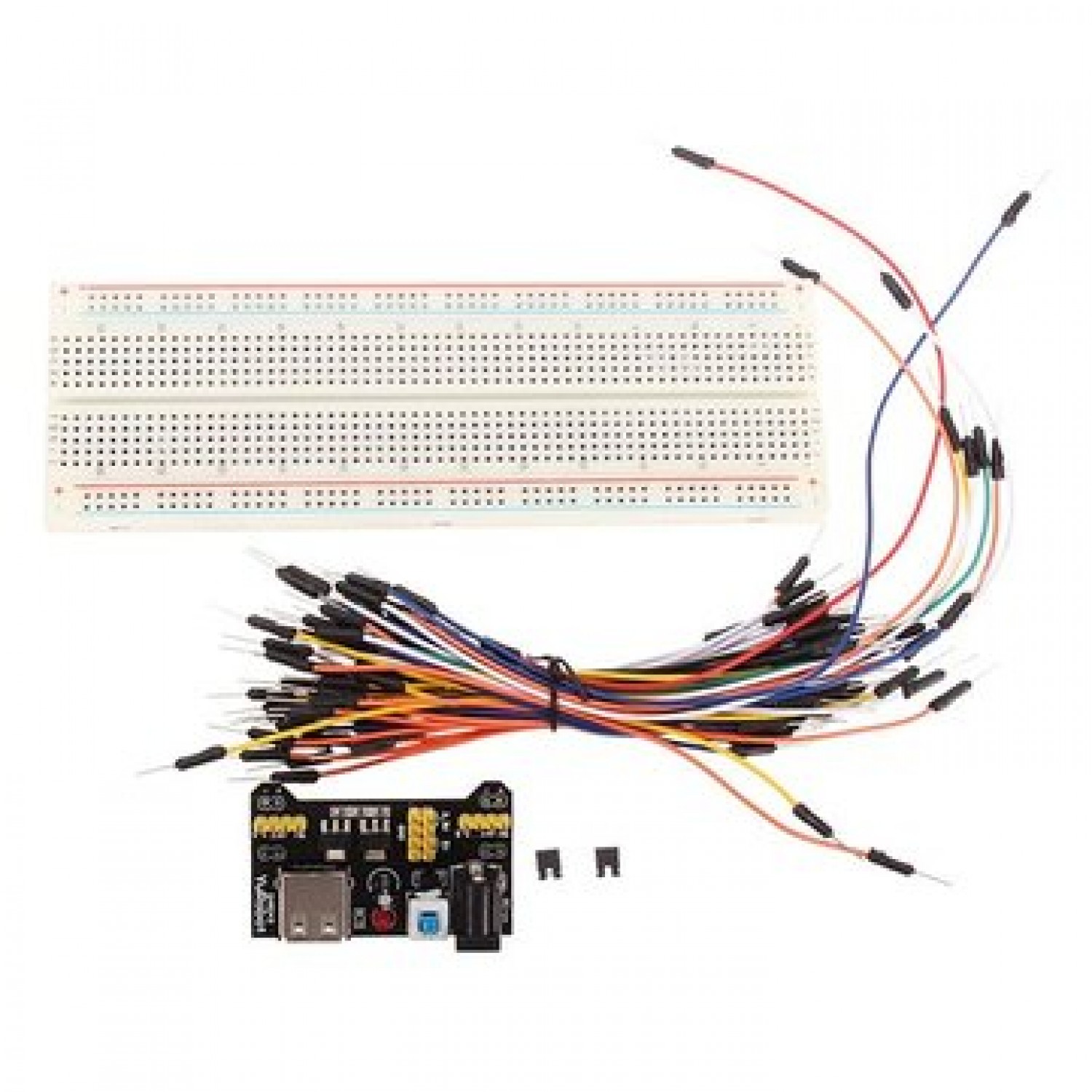

MB-102 Solderless Breadboard + Power Supply + Jumper Cable Kits + 140pcs U Shape Jumper Cable
Description:

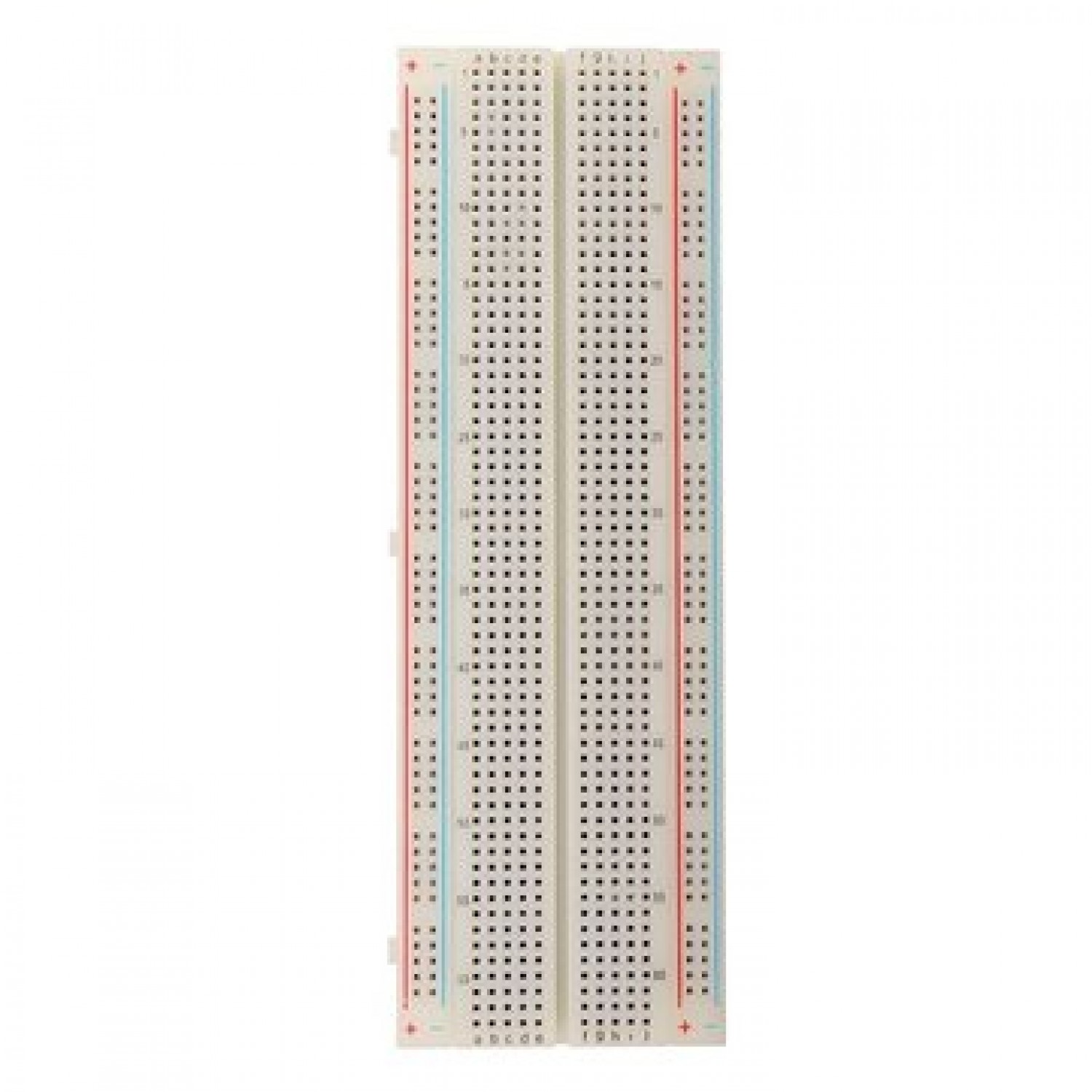

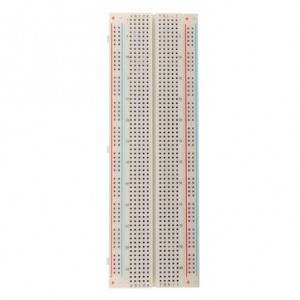

MB-102 830 Point Solderless PCB Breadboard:
Quantity: 1 Pc
Model: MB-102
Dimension: 1.7 x 5.7 x 1cm
Tie Points: 830 tie points (consists of: 30 tie-point terminal strip, 200 tie-point distribution strips)
Matrix: 12 separate 5 point terminals, plus 4 horizontal bus lines (Power Lines) of 50 test points each
Wire size: Suitable for 20~29 AWG (0.3mm ~ 0.8mm) wires

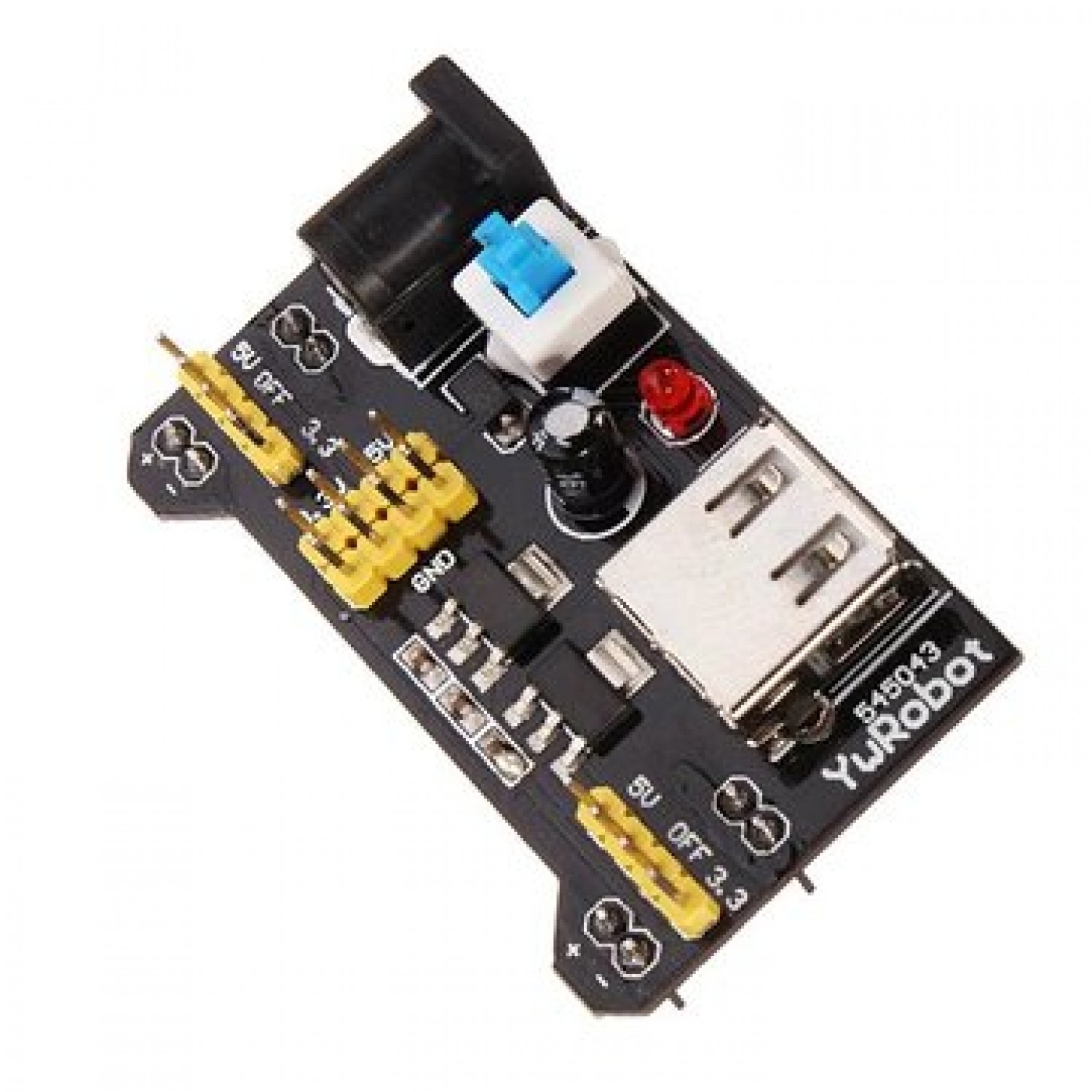

MB-102 Power Supply Module:
Input voltage: .5V ~ 12 V DC USB power supply
Output voltage: 3.3V 5V can switch over
Maximum output current: <700mA
Fluctuation two road independent control, can switch over to 0V, 3.3V, 5V
On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use
Size: 5.3 x 3.2 x 2.5cm
Note: If using the USB can not work, please use DC power.

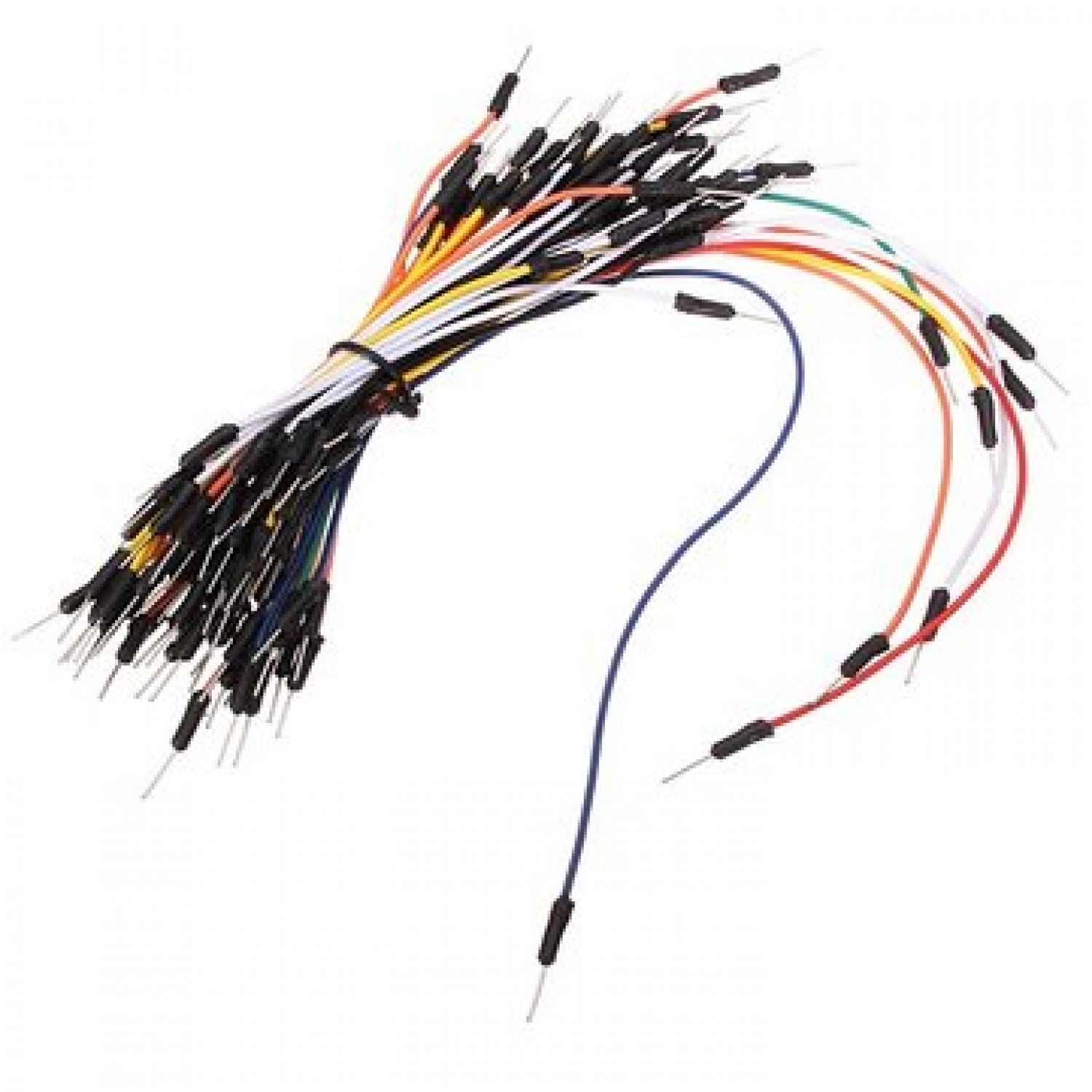

Jump Cable Wires:
Breadboard jumper cable wires
Typically used for electronics projects
Wires are flexible, durable, reusable, easy to trace
Easy to connect and disconnect
Quantity: 5 Pcs
140pcs U Shape Solderless Breadboard Jumper Cable Wire Arduino Shield
140 quality jumper
Color: red, orange, yellow, green, blue, purple, gray, brown, white.
(please notice: sometimes the color may diffierent,thanks)
Box size: 15 × 55 × 10mm;
length of the line is not the same length, the length of the line, a total length of 14 length 10 each, a total of 140
140 pcs of 22 AWG solid wires
Including length: 2,5,7,10,12,15,17,20,22,25,50,75,100, and 125 mm (10pcs Each Length)

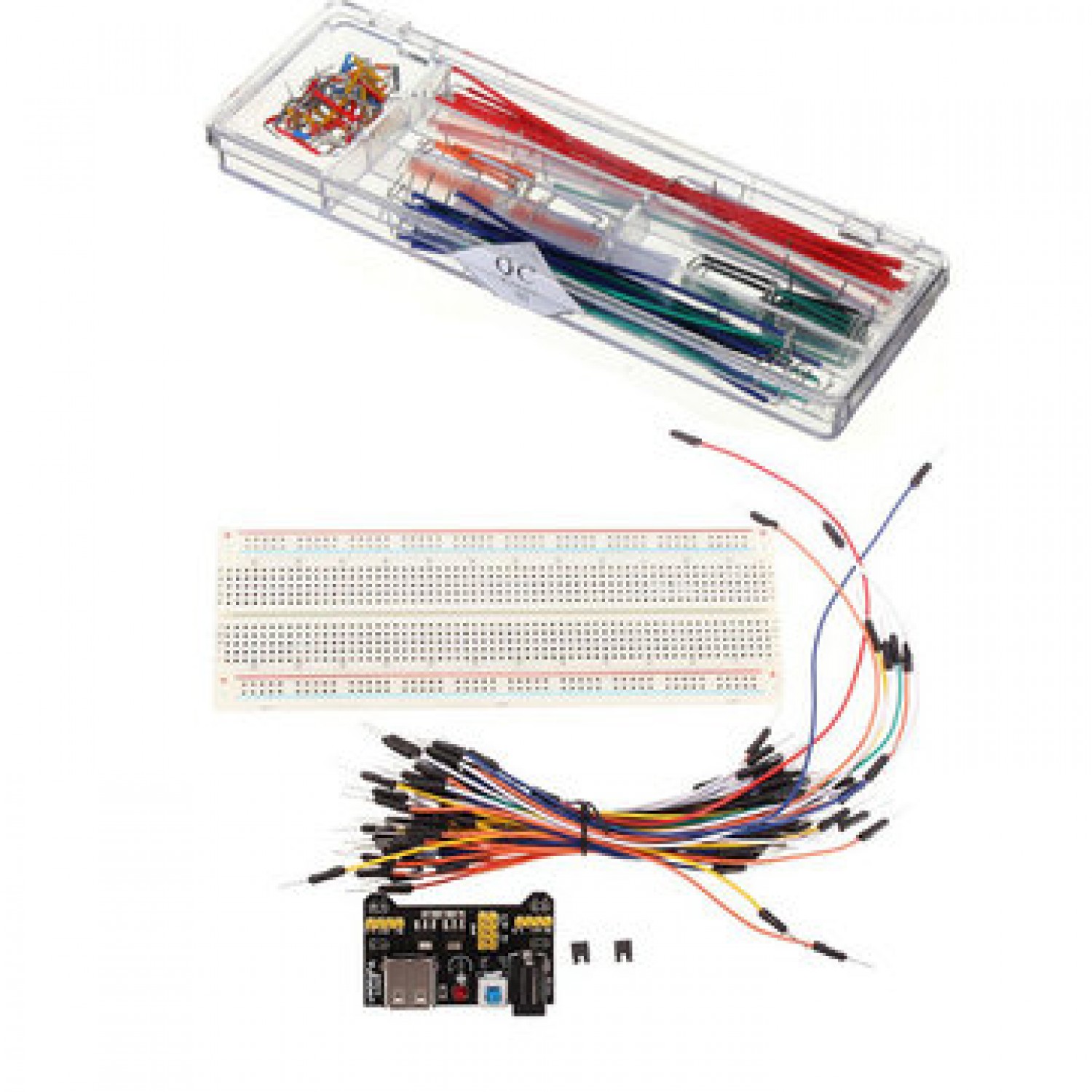

Package included:
1 x MB-102 Solderless Breadboard
1 x MB-102 Breadboard Power Supply
5 x Breadboard Jumper Cables
1 X 140pcs Jumper cable kits
