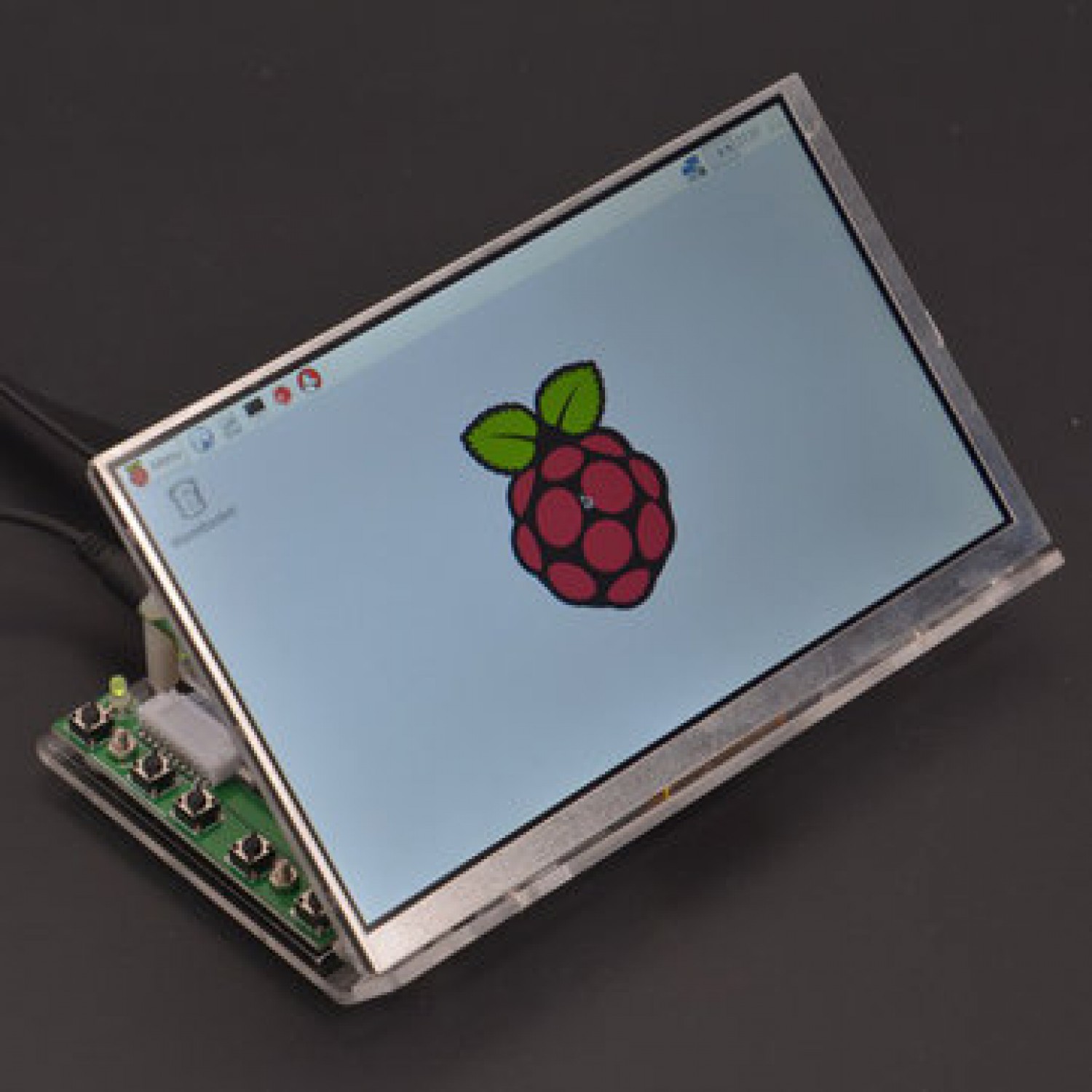

Raspberry Pi 7 Inch LCD Screen HDMI HD 1024 * 600 Display Module

  • Product Code: SKU346266
  • Availability: In Stock
$60.77 Ex Tax: $60.77

0 reviews / Write a review

Raspberry Pi 7 InchLCD Screen HDMI HD 1024 * 00 Display Module Kit With Housing Bracket

Note: The LCD screen without HDMI or VGA cable, un-touch screen version doesn't need drivers.
File download:  http:img.banggood.comfileproducts20102012142017 inch LCD.docx

The module color (green  blue) will send random delivery

Feature:

Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator
Rated power: -7W
Signal input: 2 AV + VGA + HDMI (HDMI 1.2)
Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board
Resolution: 1024 * 00,
Plug and Play: Support
OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
Control: Multi-function OSD operation or potentiometer adjust the brightness and color
Features: Using mature program, clear display
Support image flip up and down, the image can conversion 4: 3  1: 9 display format

LCD screen parameters:

Display size: 7 inch
Touch screen: Not support
Dimensions: 15 (W) × 100 (H) × 5 (D) mm
Viewing area: 154.08 (H) × 85.92 (V)
Resolution: 1024 × 3 (RGB) ×00
Point distance: 0.05 (W) × 0.15 (H) mm
Viewing angle: L70 ° R70 ° U50 ° D0
Panel type: TFT
Display color: 22K
Contrast ratio: 500: 1
Brightness: 220cd  m2
Interface type: Digital
The number of connection: 50 PIN Digital (TTL) TCON
Backlight: LED
Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

Package includes:

1 x 7-inch LCD screen

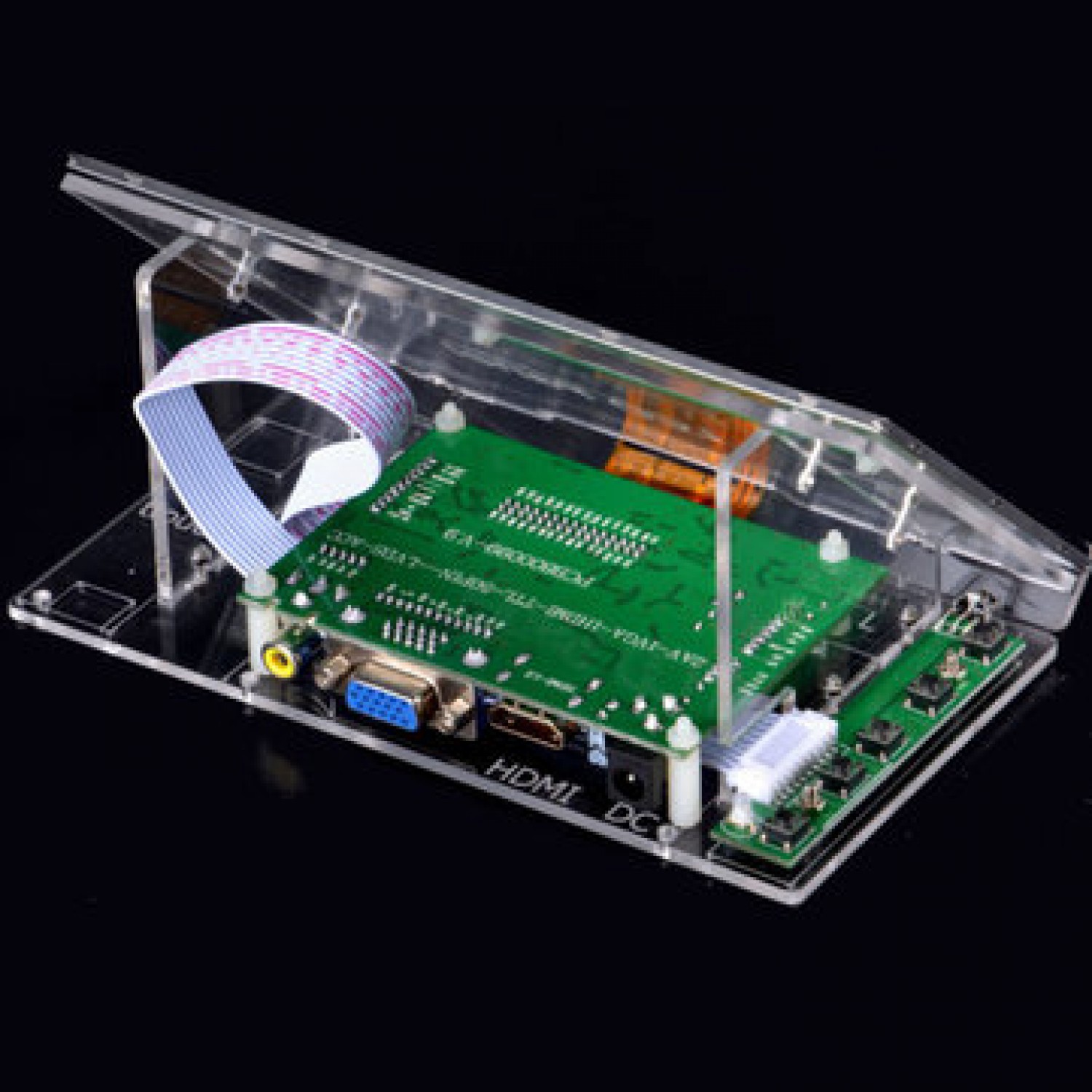

1 x LCD Driver board (Green board  blue board send random delivery)
1 x White cable (connected to the key board)
1 x Long green key board (Green board  blue board send random delivery)
1 x USB to DC5.5 power line

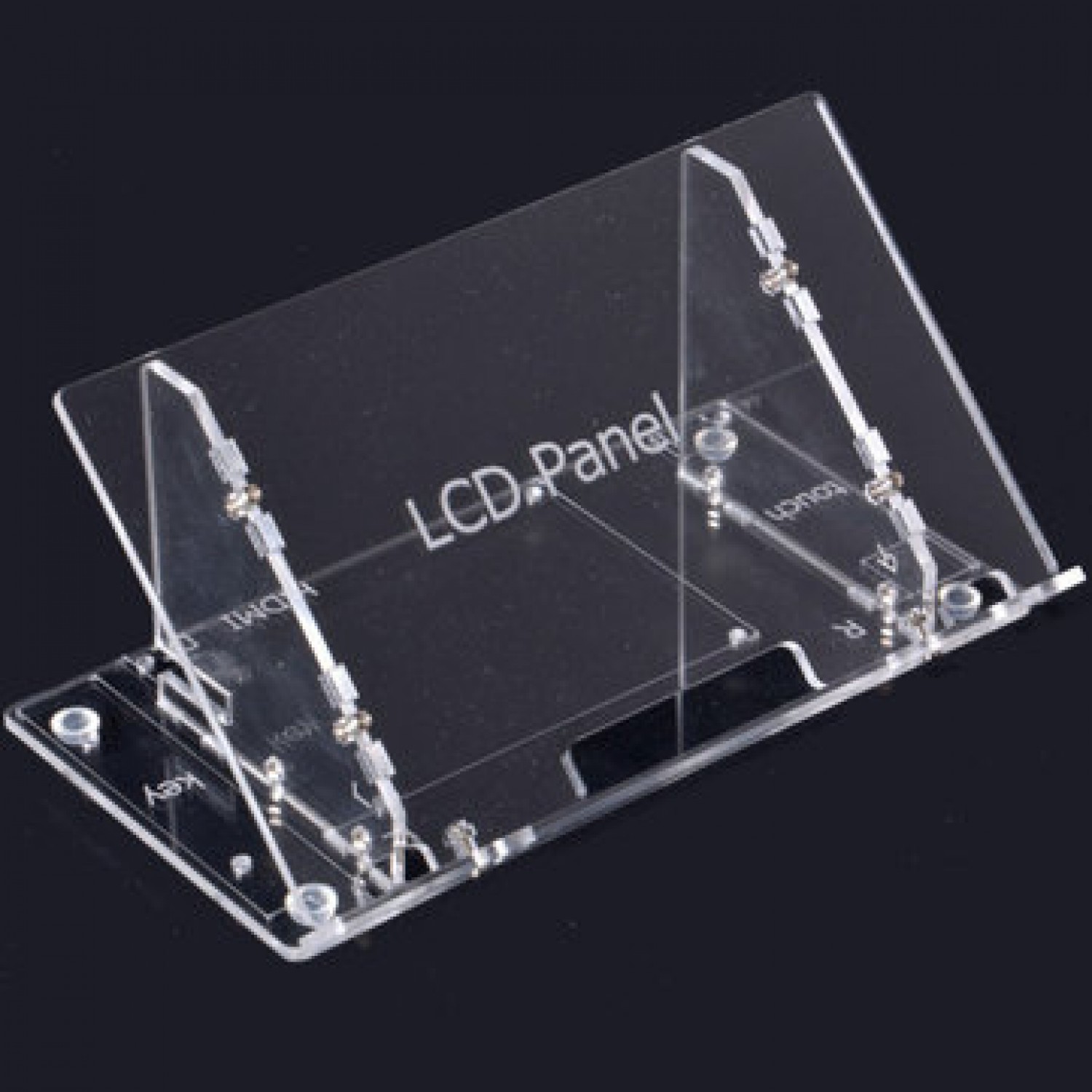

1 x Housing bracket
