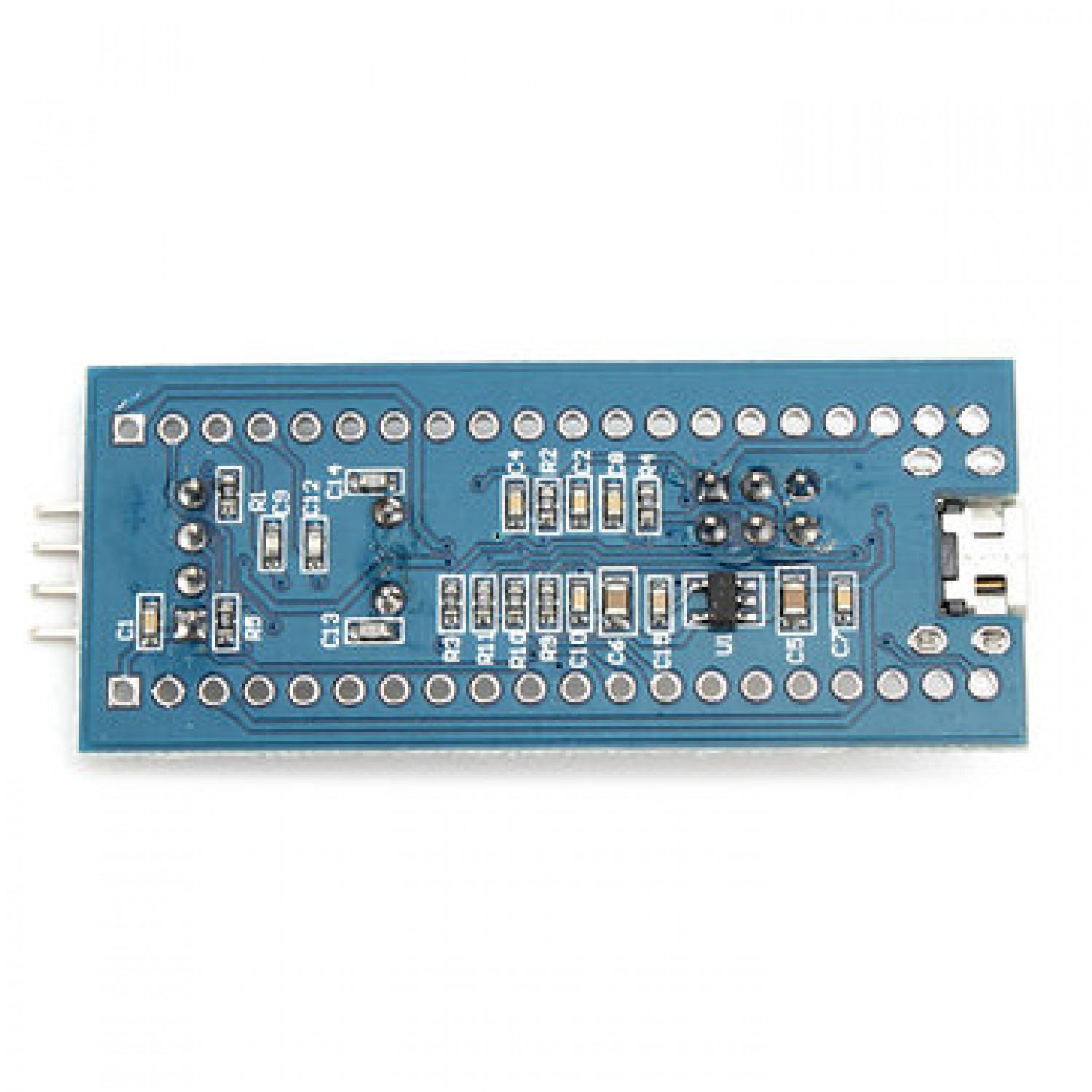

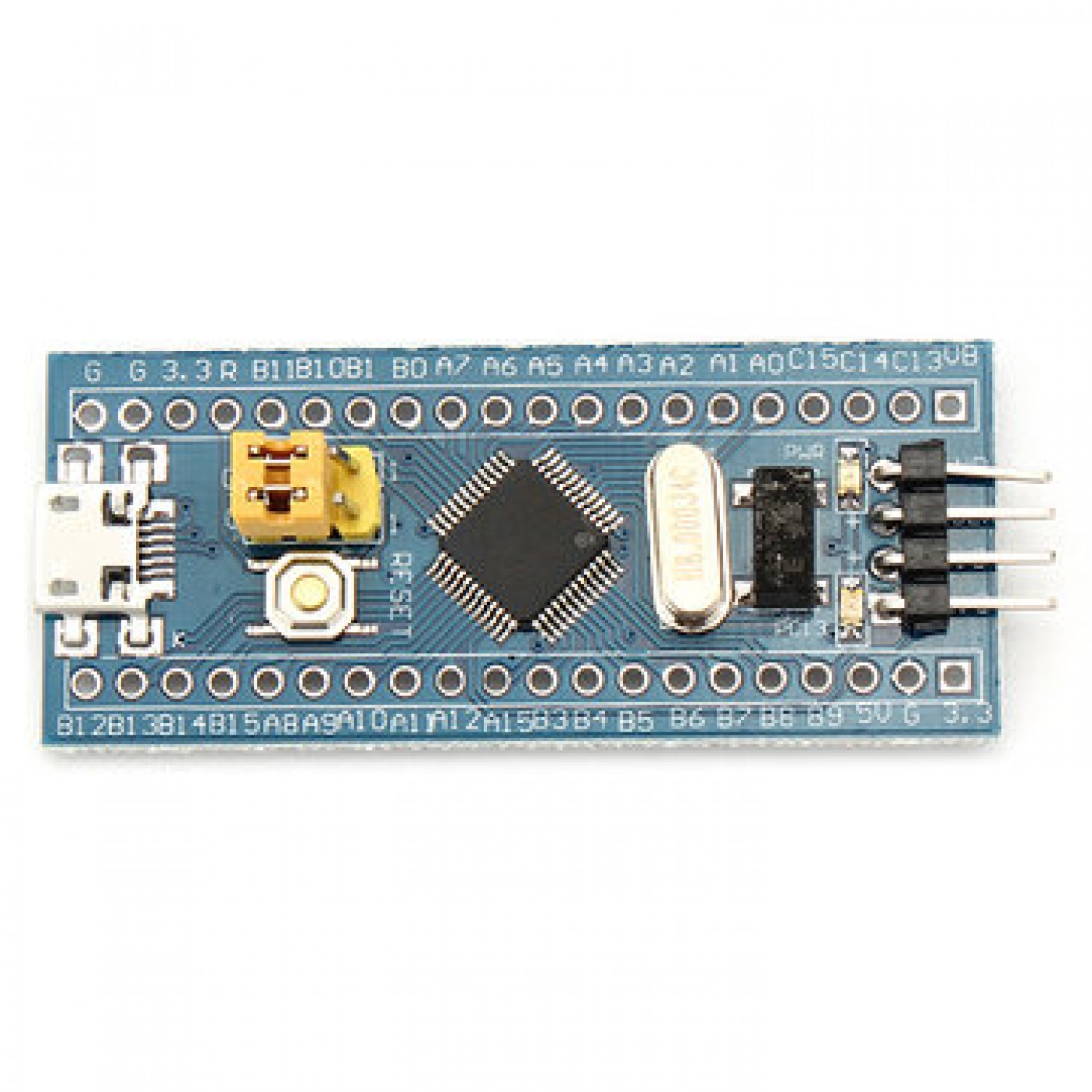

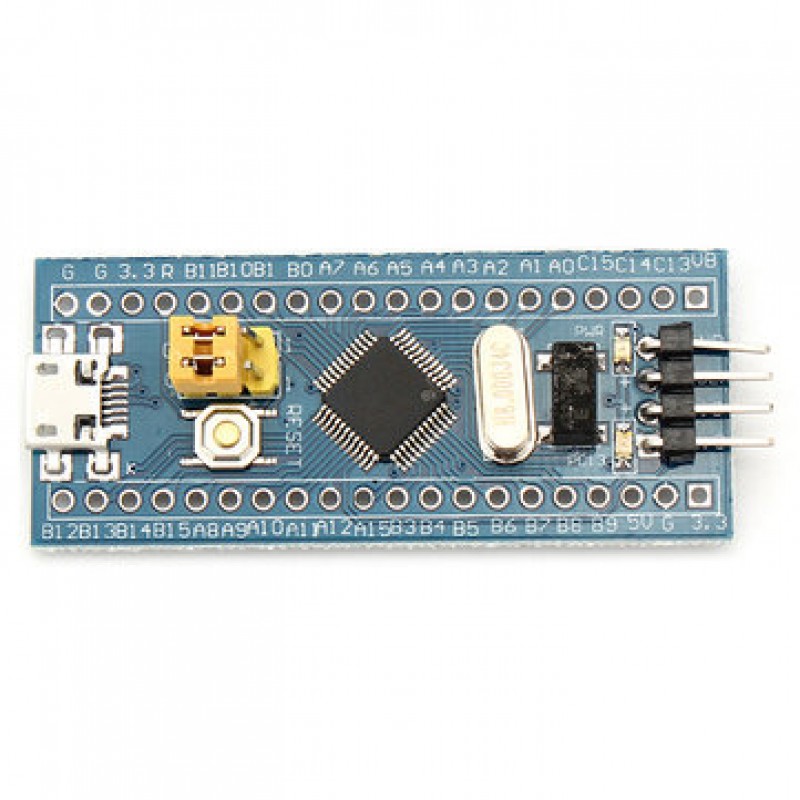

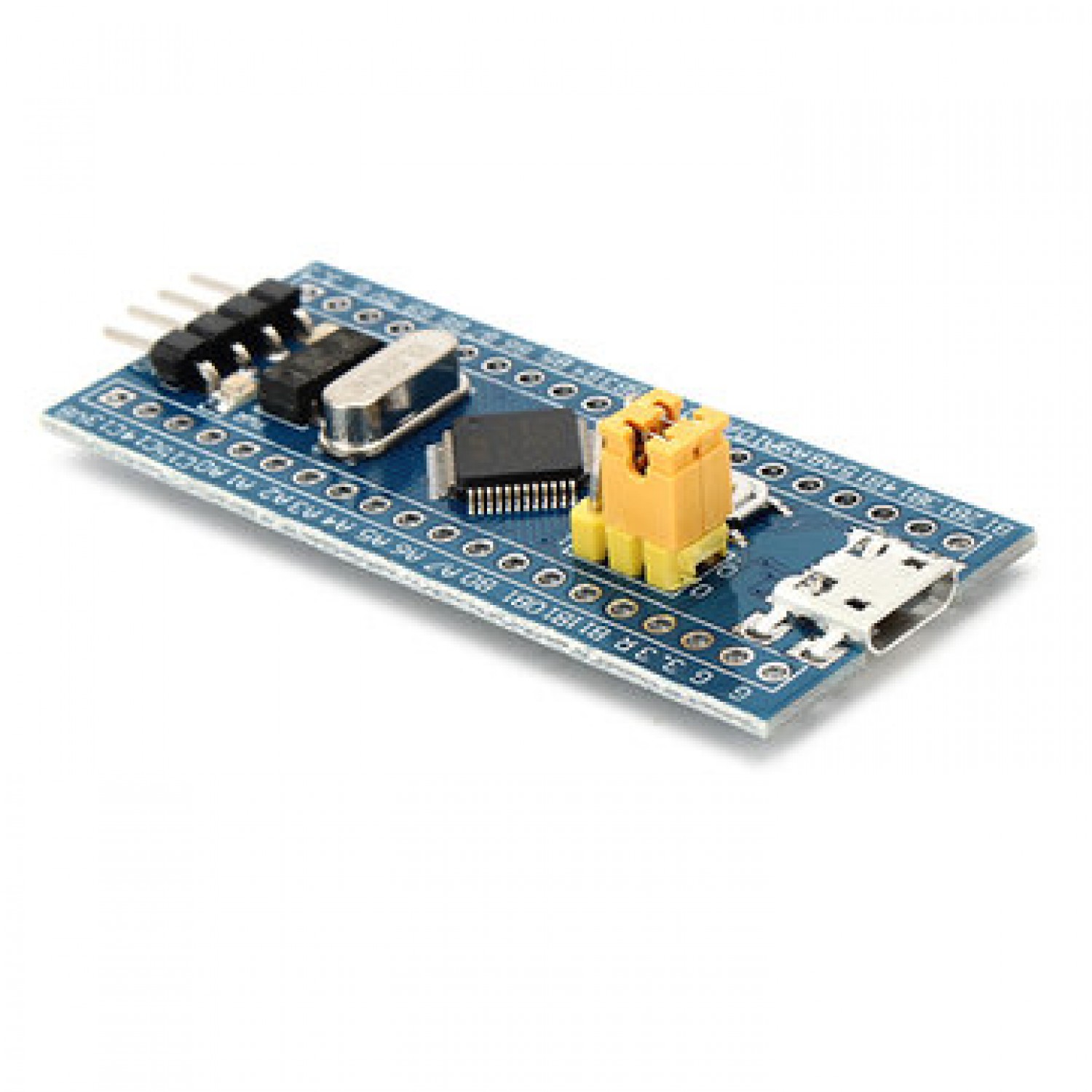

STM32F103C8T6 Small System Board Microcontroller STM32 ARM Core

STM32F103C8T Small System Board Microcontroller STM32 ARM Core Board For Arduino

Feature:   Model: STM32F103C8T Kernel: ARM32 bit Cortex™-M3CPU Size: 22.8mm x 53.34mm  Debug Mode: SWD   MCU Introduction:
1. The maximum operating frequency of 72MHz

2. Single-cycle multiply and hardware divide 3. 4k Flash program memory

4. 20k bytes SRAM

5. 2.0-3.V power supply and I  O pins

6.On power-up, power reset (POR  PDR), programmable voltage monitor

7. 4-1MHz crystal oscillator

8. Embedded 8MHz RC oscillator

9. generates CPU clock PLL

10. Sleep Stop Standby mode

11. VBAT power for the RTC back registers

12. 37 Quick I  O ports, the I  O ports can be mapped to 1 external interrupts etc.

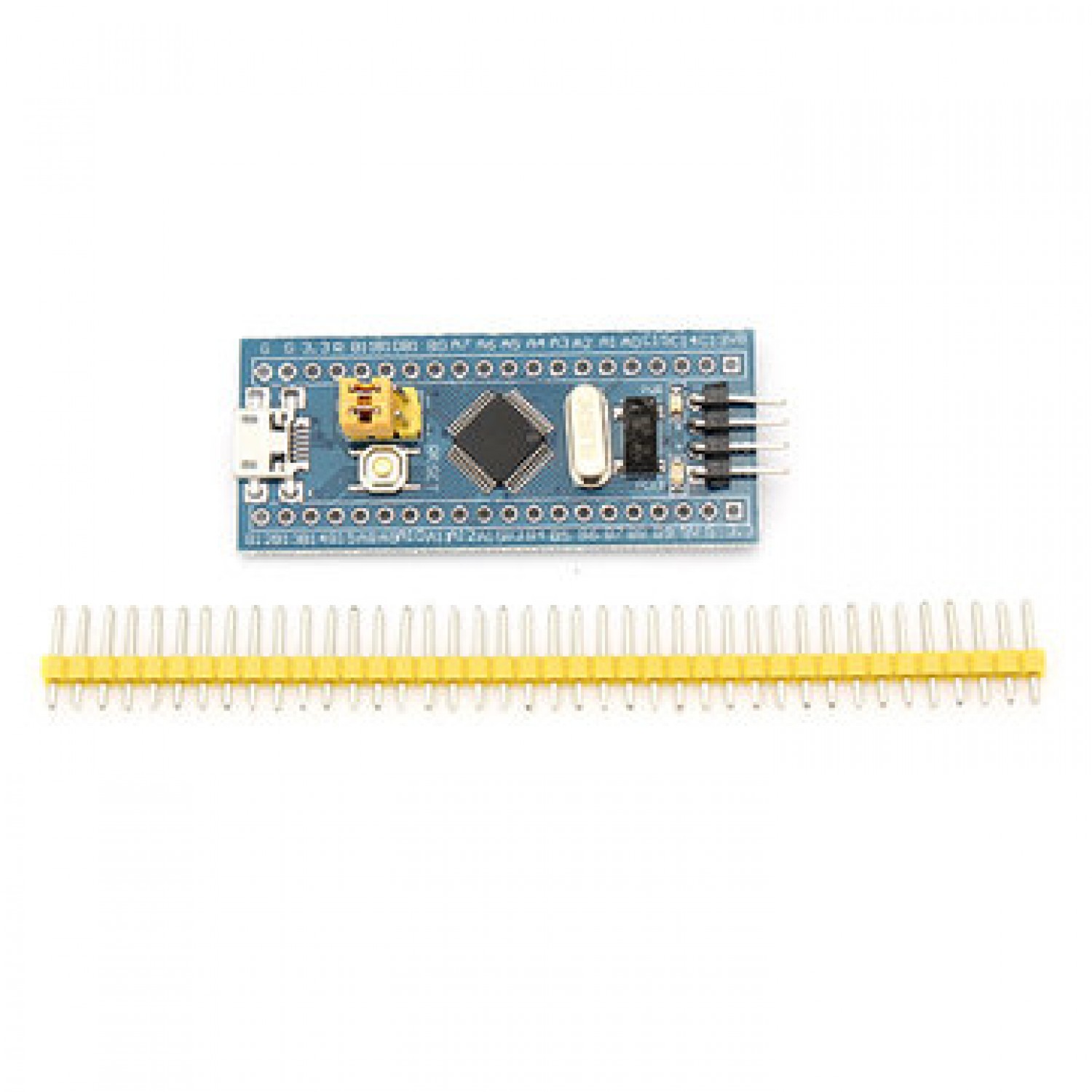

Package included:
1 x STM32F103C8T Small System Board Microcontroller STM32 ARM Core Board For Arduino

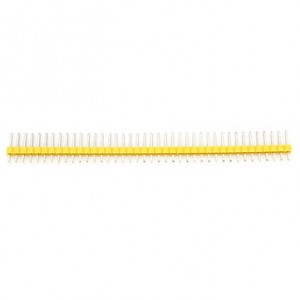

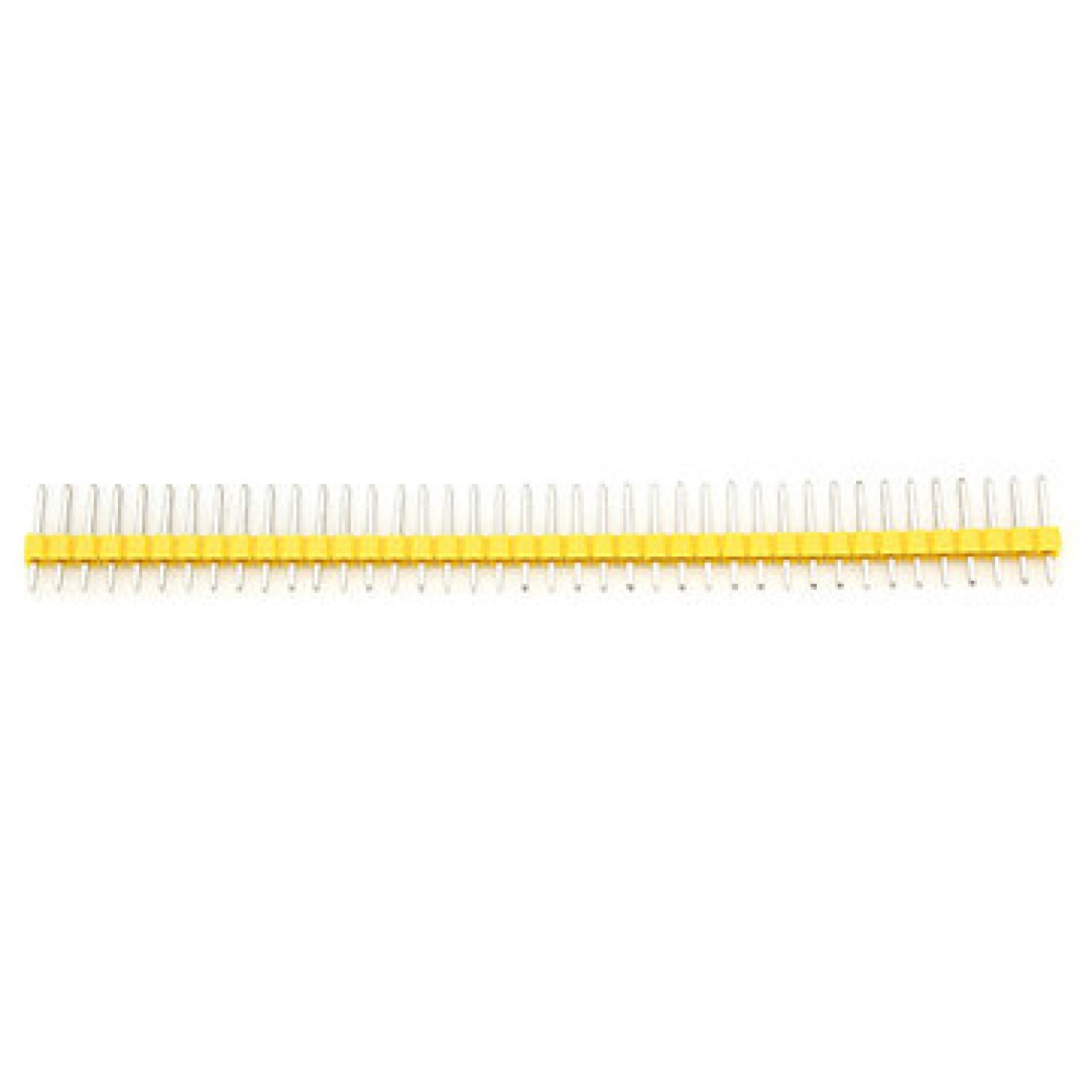

1 x Pin
